Take Format

File format

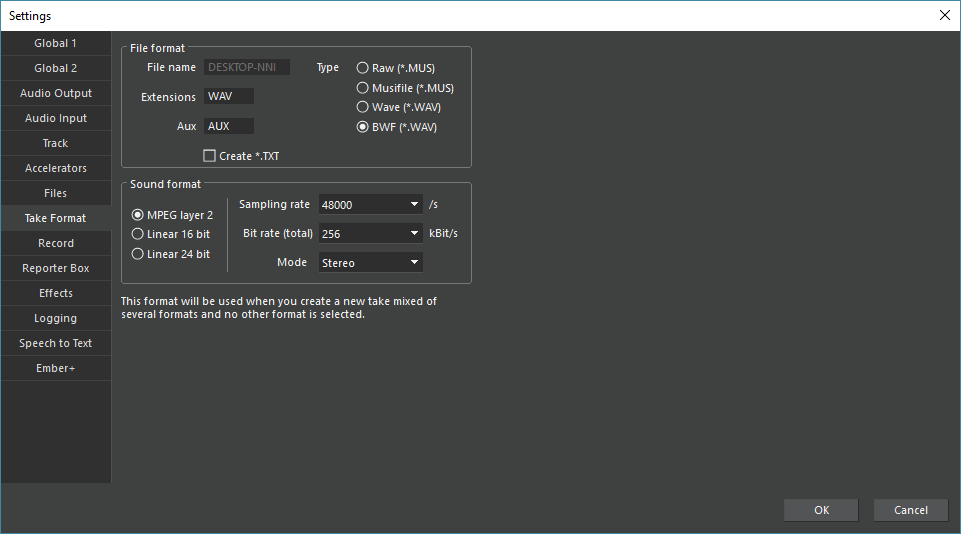

Under File name the workstation identification in the filename will be specified, as well as the Musicam and Auxiliary file extension. Also the file Type will be specified:

Raw	Raw MPEG, audio file without annexes, with extension *. MUS
Musifile	MPEG file with integrated volume and waveform information.
Wave	File in linear format.
BMF	Broadcast Wave; wave sound file with header-integrated additional information, for example text fields.
*Create .TXT**	With the activation of this option, the Audio Editor, when creating a new take, creates additionally to the audio file also a text file with the same name containing additional information. The text file will be saved in the same directory as the audio file, and may have the following contents: [FILEINFO] Filename=E:\SOUND\neu.mus Creator= Audio-Editor Date=09.02.1999,10:55:12 Length=51405 FrameLength=345 Source_1=V:\AUDIO\ALT.MUS,144,100,498,166

Under Sound format the Sampling rate, Bit rate, and the recording Mode will be set.
