Server-Side Rendering with DPE

Purpose

RenderCaeProject.wft workflow-template and EdlRenderConsole application could be used with TableWatcher, to directly render the audio with saving a project from CAE to DigaSystem table.

Server-side rendering can speed-up rendering audio-formats, which are not natively supported by browsers.

Furthermore you can select different output formats.

The workflow-template and console application can be found in “server-side_rendering” directory of CAE delivery.

Steps to install

Install FFMPEG and EdlRenderConsole on UtilityProcessor machine

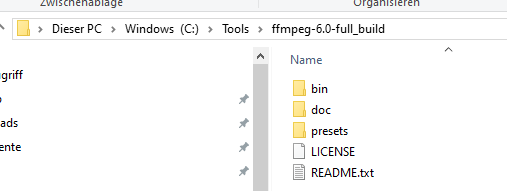

• Download and extract FFMPEG Full version https://www.gyan.dev/ffmpeg/builds/ to e.g. C:\Tools

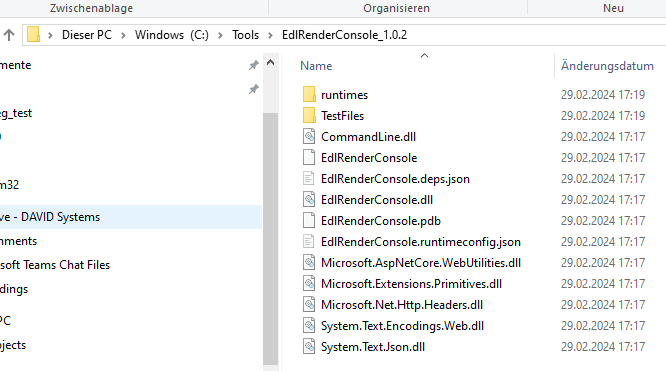

• Copy EdlRenderConsole to e.g. C:\Tools




• Install .NET Runtime 8.0.3 - https://dotnet.microsoft.com/en-us/download/dotnet/8.0

Import the workflow-template

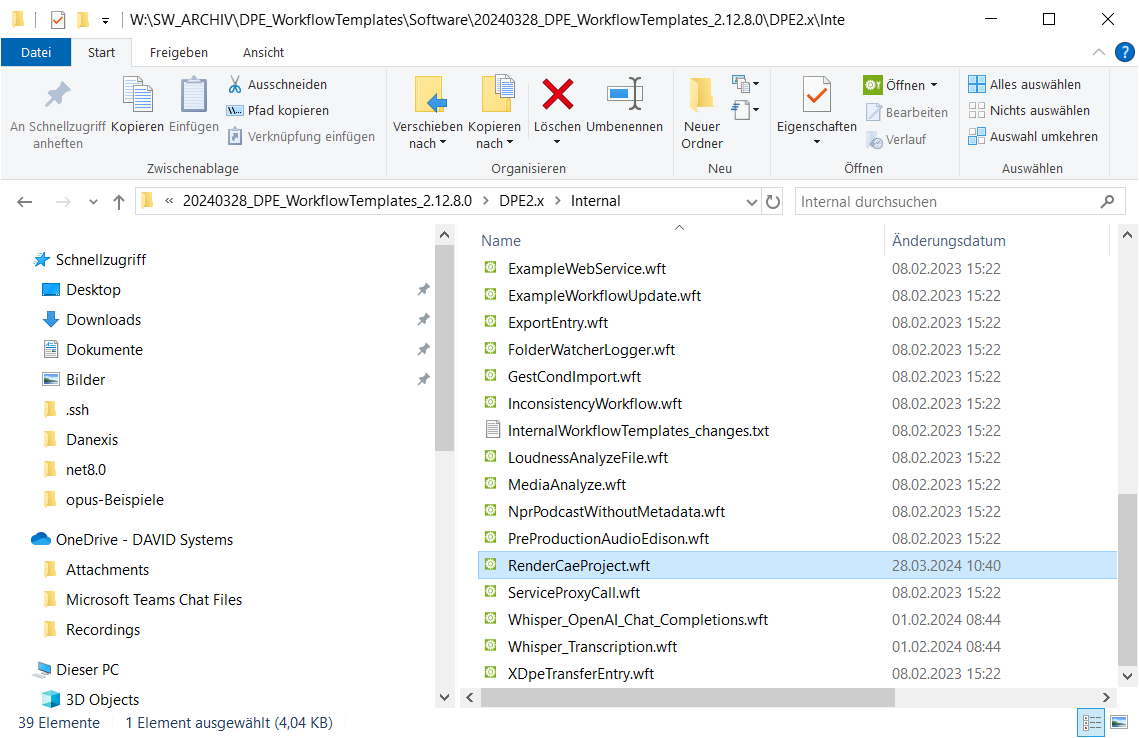

You can use either DPE Admin or DPE WorkflowEditor to import the template located at DPE_WorkflowTemplates\DPE2.x\Internal\RenderCaeProject.wft.

Create TableWatcher configuration

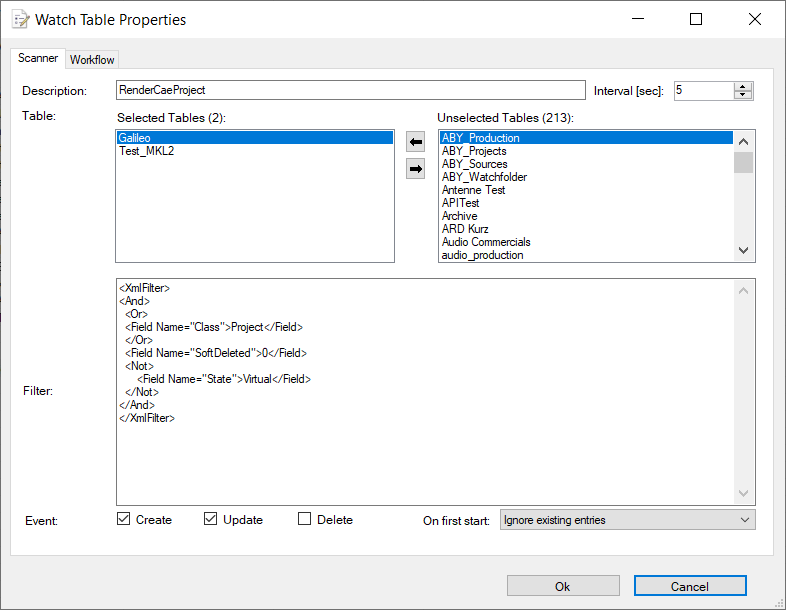

Setup a table to watch with TableWatcher

Filter:

<XmlFilter>
<And>
  <Or>
  <Field Name="Class">Project</Field>
  </Or>
  <Field Name="SoftDeleted">0</Field>
  <Not>
      <Field Name="State">Virtual</Field>
  </Not>
</And>
</XmlFilter>

Options:

• set Create and Update checkbox for the supported CAE options “Save Project to DigaSystem“ as new project or existing

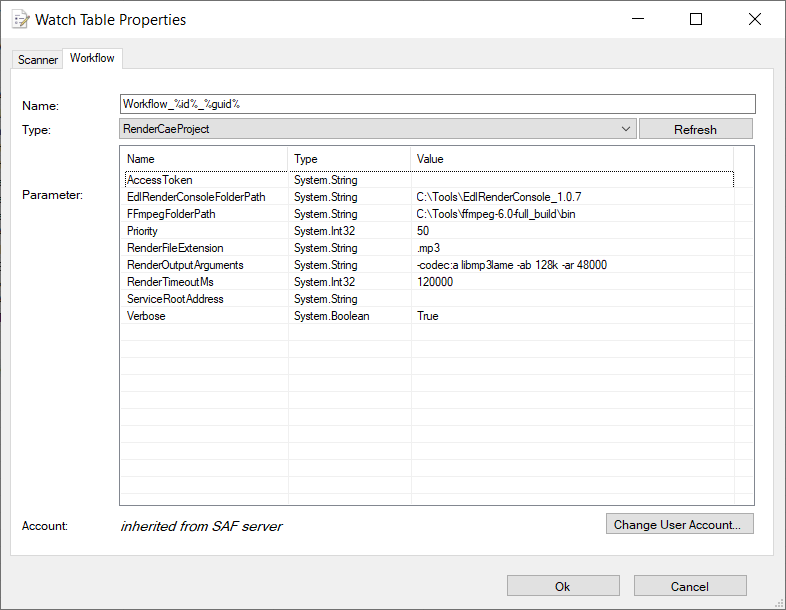

Set FFMPEG and EdlRenderConsole folder path (where the .exe files are located)

Examples:

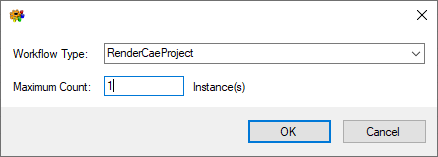

Set WorkflowWorker quota
