SAF Monitor

Open the Web Admin and select SAF Monitor to start monitoring and managing SAF modules.

The SAF Monitor enables you to:

• Search for modules with the dedicated search bar;

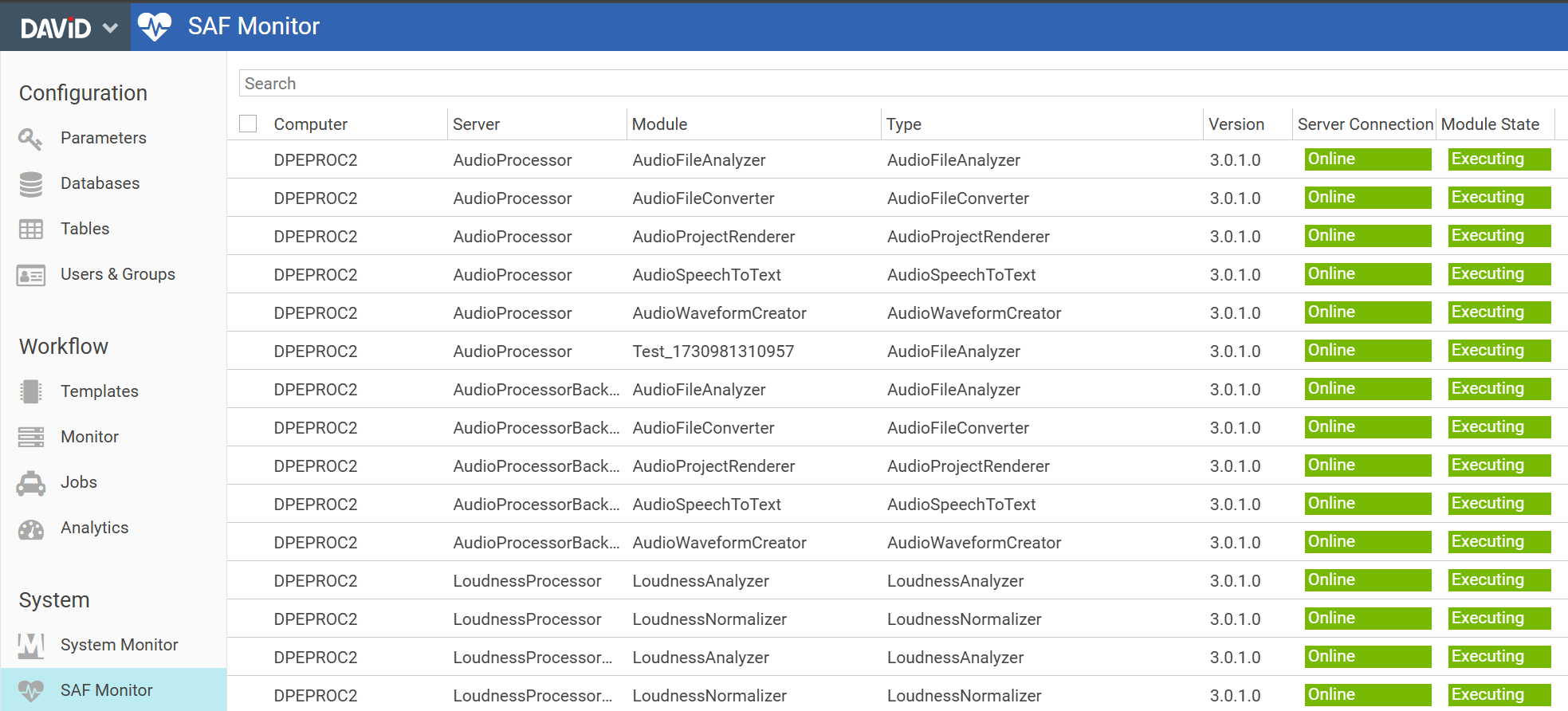

• Check, for example, the Module State, the Type and the Version of the modules (check the screenshot below);

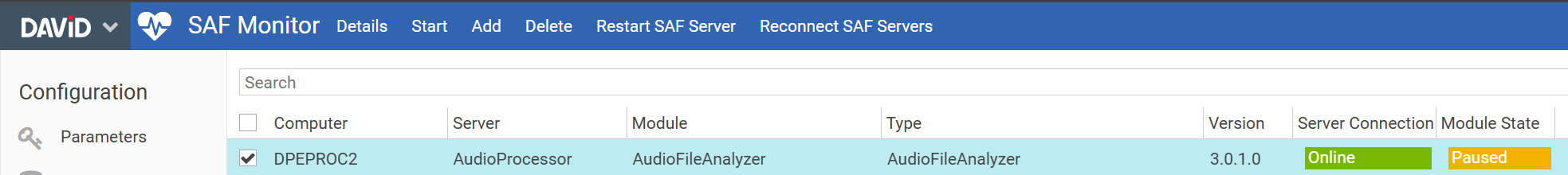

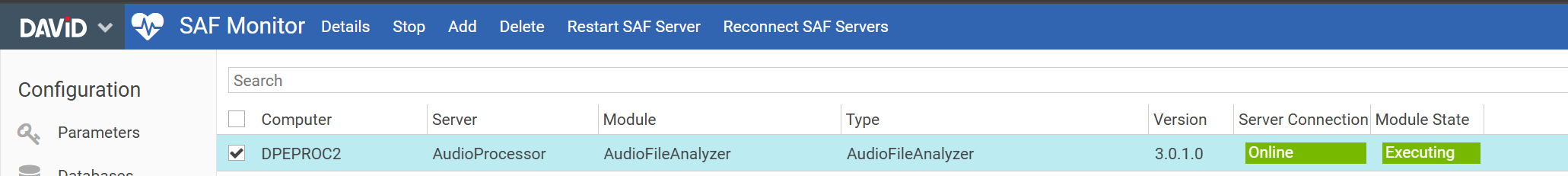

• Start and stop modules by selecting modules in the main area and clicking the top menu button Start or Stop. Stopping a module will ask the module to finish its current work and stop “gracefully”;

• Add new modules or delete existing modules
  (requires DPE Admin >= 3.1.35, Nano >= 1.2.33 or DPE Server backend >= 2.14.19 and v3 SAF Modules);

• Restart a SAF Server
  (requires DPE Admin >= 3.1.35, Nano >= 1.2.33 or DPE Server backend >= 2.14.19 and v3 SAF Modules);

• Reconnect your SAF Service (in Nano or DPE) to all SAF Servers
  (requires DPE Admin >= 3.1.35, Nano >= 1.2.33 or DPE Server backend >= 2.14.19 and v3 SAF Modules);

• See the details and the configuration of modules by selecting them and clicking the top menu button Details (check the subpage for more info).
