XmlFilter Syntax And Examples

XmlFilter syntax is used in ContentManager and WorkflowTableWatcher.

XmlFilter Syntax-Examples

Percent Sign

The percent sign is a placeholder as soon as the 'Like' statement is set, which is done by Like=”1”. Otherwise, the percent sign is interpreted as a usual character.

Examples:

<Field Name="Title" Like="1">%shakira%</Field>

„MyShakirA2001“ would match for this filter.

<Field Name="Title" Like="1">%shakira</Field>

„MyShakirA“ would match for this filter, „MyShakirA2001“ would not.

Simple field

XML

<XmlFilter>
    <Field Name="Title">shakira</Field>
</XmlFilter>

Simple field with like

XML

<XmlFilter>
    <Field Name="Title" Like="1">shakira</Field>
</XmlFilter>

Logical trees

XML

<XmlFilter>
    <And>
        <Field Name="Title">shakira</Field>
        <Or>
            <Field Name="Class">Video</Field>
            <Field Name="Class">Audio</Field>
        </Or>
        <Not>
            <Field Name="Invalid">1</Field>
        </Not>
    </And>
</XmlFilter>

Comparison

XML

<XmlFilter>
    <Field Name="Duration">
        <Greater>0</Greater>
        <LessOrEqual>1000</LessOrEqual>
    </Field>
</XmlFilter>

Check for missing custom fields

Example: Check if entry has been loudness analyzed

XML

<XmlFilter>
<And>
    <Not>
        <Field Name="LOUDNESS/ILK" IsMissing="1"></Field>
    </Not>
    <Field Name="SoftDeleted">0</Field>
</And>
</XmlFilter>

Example: Check if entry has not been loudness analyzed

XML

<XmlFilter>
<And>
    <Field Name="LOUDNESS/ILK" IsMissing="1"></Field>
    <Field Name="SoftDeleted">0</Field>
</And>
</XmlFilter>

Time ranges

Example: Created within last 7 days

XML

<XmlFilter>
  <Field Name="CreateDate">
    <Greater Parse="1">@now()@addtime("-7:00:00:00")</Greater>
  </Field>
</XmlFilter>

The attribute Parse="1" activates parsing of the value.
The function addtime uses the same syntax expected by the system method TimeSpan.Parse.

Example: Created within last 1 hour

XML

<XmlFilter>
  <Field Name="CreateDate">
    <Greater Parse="1">@now()@addtime("-01:00:00")</Greater>
  </Field>
</XmlFilter>

Example: BroadcastDate Today+Yesterday

XML

<XmlFilter>
    <Or>
          <Field Name="BroadcastDate" Parse="1">@now()@addtime("-1:00:00:00")</Field>
          <Field Name="BroadcastDate" Parse="1">@now()</Field>
    </Or>
</XmlFilter>

Example: FirstUseDate and LastUseDate

Requires at least DPE 2.15.x or Nano 1.3.x

Entries that match FirstUseDate and LastUseDate or have them unset

CODE

 <XmlFilter>
    <Or>
        <And>
            <Field Name="FirstUseDate" IsMissing="1">0</Field>
            <Field Name="LastUseDate" IsMissing="1">0</Field>
        </And>

        <And>
            <Field Name="FirstUseDate" >
                <LessOrEqual Parse="1">@now()</LessOrEqual>
            </Field>
            <Field Name="LastUseDate" IsMissing="1">0</Field>
        </And>

        <And>
            <Field Name="FirstUseDate" IsMissing="1">0</Field>
            <Field Name="LastUseDate" >
                <GreaterOrEqual Parse="1">@now()</GreaterOrEqual>
            </Field>
        </And>

        <And>
            <Field Name="FirstUseDate" >
                <LessOrEqual Parse="1">@now()</LessOrEqual>
            </Field>
            <Field Name="LastUseDate" >
                <GreaterOrEqual Parse="1">@now()</GreaterOrEqual>
            </Field>
        </And>
    </Or>
</XmlFilter>

Only Entries that match FirstUseDate and LastUseDate, do not include entries that have unset values

CODE

<XmlFilter>
    <Or>
        <And>
            <Field Name="FirstUseDate" >
                <LessOrEqual Parse="1">@now()</LessOrEqual>
            </Field>
            <Field Name="LastUseDate" IsMissing="1">0</Field>
        </And>

        <And>
            <Field Name="FirstUseDate" IsMissing="1">0</Field>
            <Field Name="LastUseDate" >
                <GreaterOrEqual Parse="1">@now()</GreaterOrEqual>
            </Field>
        </And>

        <And>
            <Field Name="FirstUseDate" >
                <LessOrEqual Parse="1">@now()</LessOrEqual>
            </Field>
            <Field Name="LastUseDate" >
                <GreaterOrEqual Parse="1">@now()</GreaterOrEqual>
            </Field>
        </And>
    </Or>
</XmlFilter>

Only entries that do NOT match FirstUseDate and LastUseDate

CODE

<XmlFilter>
  <And>
    <Not>
        <And>
            <Field Name="FirstUseDate" IsMissing="1">0</Field>
            <Field Name="LastUseDate" IsMissing="1">0</Field>
        </And>
    </Not>

    <Not>
    <Or>
        <And>
            <Field Name="FirstUseDate" >
                <LessOrEqual Parse="1">@now()</LessOrEqual>
            </Field>
            <Field Name="LastUseDate" IsMissing="1">0</Field>
        </And>

        <And>
            <Field Name="FirstUseDate" IsMissing="1">0</Field>
            <Field Name="LastUseDate" >
                <GreaterOrEqual Parse="1">@now()</GreaterOrEqual>
            </Field>
        </And>

        <And>
            <Field Name="FirstUseDate" >
                <LessOrEqual Parse="1">@now()</LessOrEqual>
            </Field>
            <Field Name="LastUseDate" >
                <GreaterOrEqual Parse="1">@now()</GreaterOrEqual>
            </Field>
        </And>
    </Or>
    </Not>
  </And>
</XmlFilter>

Entry part of group

Example: All entries not in a group

XML

<XmlFilter>
    <Field Name="HasParent">0</Field>
</XmlFilter>

The field "HasParent" is a virtual field, it does not exist on entry level.

Example: All entries which are at least in one group

XML

<XmlFilter>
    <Field Name="HasParent">1</Field>
</XmlFilter>

Entries being a Group

Examples: All entries from type group

XML

<XmlFilter>
    <Field Name="Story">2</Field>
</XmlFilter>

Example: Alle entries (that are not a group)

XML

<XmlFilter>
    <Field Name="Story">0</Field>
</XmlFilter>

Entries for current user

Use @currentUser() to get the DigaSystem ID of the currently logged-on user

XML

<XmlFilter>
<And>
    <Field Name="Author" Parse="1">@currentUser()</Field>
    <Field Name="SoftDeleted">0</Field>
</And>
</XmlFilter>

Use @currentUser(LONG) to get the long (or secondary) DigaSystem ID of the currently logged-on user

XML

<XmlFilter>
<And>
    <Field Name="Author" Parse="1">@currentUser(LONG)</Field>
    <Field Name="SoftDeleted">0</Field>
</And>
</XmlFilter>

Use @currentUser(FULL) to get the full name of the currently logged-on user

XML

<XmlFilter>
<And>
    <Field Name="Author" Parse="1">@currentUser(FULL)</Field>
    <Field Name="SoftDeleted">0</Field>
</And>
</XmlFilter>

Entries for Custom Flags (Digas\Settings\Flags)

Find entries with a custom flag 7301 and 7302

XML

<XmlFilter>
<And>
  <Field Name="SoftDeleted">0</Field>
  <Field Name="FlagsEx" Like="1">7301</Field>
  <Field Name="FlagsEx" Like="1">7302</Field>
</And>
</XmlFilter>

Find entries with no custom flag and not with the flag 7301

XML

<XmlFilter>
<And>
  <Field Name="SoftDeleted">0</Field>
  <Not>
    <Field Name="FlagsEx" Like="1">7301</Field>
  </Not>
</And>
</XmlFilter>

Find entries with no custom flag and not with the flag 7301 and 7302

XML

<XmlFilter>
<And>
  <Field Name="SoftDeleted">0</Field>
  <Not>
    <Field Name="FlagsEx" Like="1">7301</Field>
  </Not>
  <Not>
    <Field Name="FlagsEx" Like="1">7302</Field>
  </Not>
</And>
</XmlFilter>

Context-sensitive filters

Requires at least DPE 2.15.x or Nano 1.3.x

Available only for ContentManager and not for TableWatcher.

Example: Weekday

Entries where the current weekday matches the Weekday bitfield or have no weekday set

CODE

<XmlFilter>
  <And>
    <Field Name="SoftDeleted">0</Field>

    <Or>
        <Field Name="Weekday" IsMissing="1" >0</Field>
        <Field Name="Weekday" Parse="1" Bitfield="1">@weekday()</Field>
    </Or>
  </And>
</XmlFilter>

Entries where the current weekday matches the Weekday bitfield but not entries that have no weekday set

CODE

<XmlFilter>
  <And>
    <Field Name="SoftDeleted">0</Field>

    <Field Name="Weekday" Parse="1" Bitfield="1">@weekday()</Field>
  </And>
</XmlFilter>

Entries that do not match the current weekday but not entries that have no weekday set

CODE

<XmlFilter>
  <And>
    <Field Name="SoftDeleted">0</Field>

    <Not>
        <Or>
            <Field Name="Weekday" IsMissing="1" >0</Field>
            <Field Name="Weekday" Parse="1" Bitfield="1">@weekday()</Field>
        </Or>
    </Not>
  </And>
</XmlFilter>

Example: Seasonal

Entries where the Seasonal field matches one of the current seasons or the Seasonal field is unset

CODE

<XmlFilter>
  <And>
    <Field Name="SoftDeleted">0</Field>

    <Or>
        <Field Name="Seasonal" IsMissing="1">0</Field>
        <Macro>CurrentSeasons</Macro>
    </Or>
  </And>
</XmlFilter>

Entries where the Seasonal field matches one of the current seasons but not where the Seasonal field is unset

CODE

<XmlFilter>
  <And>
    <Field Name="SoftDeleted">0</Field>

    <Macro>CurrentSeasons</Macro>
  </And>
</XmlFilter>

Entries where the Seasonal field is set but does not match one of the current seasons

CODE

<XmlFilter>
  <And>
    <Field Name="SoftDeleted">0</Field>

    <Not>
        <Or>
            <Field Name="Seasonal" IsMissing="1">0</Field>
            <Macro>CurrentSeasons</Macro>
        </Or>
    </Not>
  </And>
</XmlFilter>

Defining Seasons

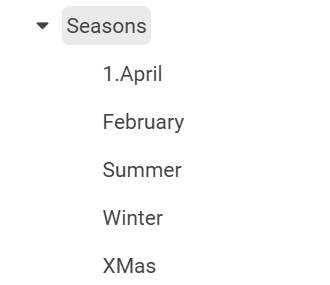

For each season create a folder in the Global parameter registry underneath Common|Seasons

Example:

Each folder may contain the following key/values:

Key	Value Description
StartDate	e.g. “20251223”
EndDate	e.g. “20251227”
Name	If not set the name of the folder is used. Name is used to match against Seasonal definition list value e.g. “XMas”
Mode	Auto-detection modes “Winter”, “Spring”, “Summer”, “Autumn” automatically set the StartDate and EndDate for yearly seaons

Make sure you have the value used for “Name” also defined in the definition list “Seasonal”

Example: PlayTime

Requires at least DPE 2.16.5 or Nano 1.4.16

Entries where the PlayTime field matches one of the current play times or the PlayTime field is unset

CODE

<XmlFilter>
  <And>
    <Field Name="SoftDeleted">0</Field>

    <Or>
        <Field Name="PlayTime" IsMissing="1">0</Field>
        <Macro>CurrentPlayTimes</Macro>
    </Or>
  </And>
</XmlFilter>

Entries where the PlayTime field matches one of the current play times but not where the PlayTime field is unset

CODE

<XmlFilter>
  <And>
    <Field Name="SoftDeleted">0</Field>

    <Macro>CurrentPlayTimes</Macro>
  </And>
</XmlFilter>

Entries where the PlayTime field is set but does not match one of the current play times

CODE

<XmlFilter>
  <And>
    <Field Name="SoftDeleted">0</Field>

    <Not>
        <Or>
            <Field Name="PlayTime" IsMissing="1">0</Field>
            <Macro>CurrentPlayTimes</Macro>
        </Or>
    </Not>
  </And>
</XmlFilter>

Defining PlayTimes

For each playtime value create a folder in the Global parameter registry underneath Common|PlayTimes

Example:

Each folder may contain the following key/values:

Key	Value Description
StartTime	e.g. “7”
EndTime	e.g. “9:30”
Name	If not set the name of the folder is used. Name is used to match against PlayTime definition list value e.g. “Early”
Mode	Not used yet

Make sure you have the value used for “Name” also defined in the definition list “PlayTime”

Setting Macro Behavior when current context does not match any Season or PlayTime

Requires at least DPE 2.16.5 or Nano 1.4.16

Behavior: False (default)

CODE

<Macro BehaviorOnEmpty="False">CurrentPlayTimes</Macro>

If the current context does not match any specified PlayTime.

Then behave as if the macro would not match any entry

Behavior: True

CODE

<Macro BehaviorOnEmpty="False">CurrentPlayTimes</Macro>

If the current context does not match any specified PlayTime.

Then behave as if the macro would match every entry

Behavior: Remove

CODE

<Macro BehaviorOnEmpty="False">CurrentPlayTimes</Macro>

If the current context does not match any specified PlayTime.

Then behave as if the macro would not exist.
