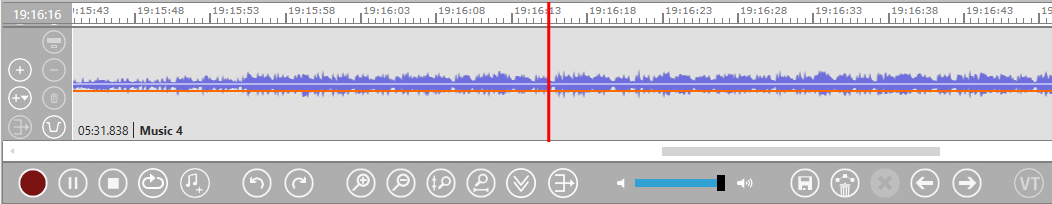

Control Bar

The control bar is located below the timeline.

Record mode

Collapse Tracks, minimizes the height of all tracks without scroll bars.

Expand Tracks, reverts the visual change to standard mode with scroll bars.

Start Playback

Pause Playback

Save the changes in all tracks

Stop Playback

Reset the fade curve (except Mark In/Out, Level In/Out, Gain)

Loop playback is switched off

Loop playback is switched on

Note: This button works independently from the DigAIRange setting at the OnAIR TrackMixer tab "Loop playing".

Undo all unsaved changes

Load previous show element into the upper track and show transition to current element (lower track)

Reset and restart recording. No undo is possible!

Show transition of the current (track 1) and next show element (track 2)

Undo the last work step

Set elements to sequenced and go to previous transition

"Previous Transition" changes to "Set elements to sequenced and go to previous transition" when Ctrl is hold

Redo previously undone steps

Set elements to sequence and go to next transition

"Next Transition" changes to "Set elements to sequenced and go to next transition" when Ctrl is hold

Zoom into the timeline waveform

(or Shift + mouse wheel up)

Enable Voice Tracking function

	Disable Voice Tracking function
	Voice Tracking function is greyed out as changes are not saved or more than two elements are loaded to the timeline

Zoom out of the timeline waveform

(or Shift + mouse wheel down)

Information about OnAIR TrackMixer

Vertical zoom off

Toggle to vertical zoom on

Zoom out to a complete overview of all loaded audio items with one click

Toggle back to previous zoom factor
