Configuring Printing Template

A Print template is a layout which specifies what and how a metadata information will be printed. The printing template for printing an entry can be freely configured using CSS and Handlebars. This file should be located in the "print/" sub-directory and the file must be named 'print-template.html'. An example of print template is given below.

Print Template Example

CODE

<style>
    .outer {
        width: 100%;
    }
    .inner {
        padding-top: 2.5cm;
        padding-bottom: 2.5cm;
        padding-left: 2.5cm;
        padding-right: 2.5cm;
        margin: 0px;
        page-break-after: avoid;
        font-size: medium;
    }
    table#info {
        width: 100%;
        table-layout: fixed
    }
    tr {
        height: 25px;

    }
    td{
        border: 1px solid grey;
        padding-left: 2px;
        vertical-align: middle;
    }
    td#value {
        font-weight: bold;
    }
    .logo {
        font-size: 70px;
        font-style: normal;
        font-weight: normal;
        color: gray;
        text-align: left;
        padding-bottom: 25px;
    }
</style>

{{#if ignoreAudio}}

	<div class="outer">
		<div class="inner">
			<div class="logo">Logo</div>
			<div>
				<table id="info">
					<tr>
						<td>Start Time:</td>
						<td id="value" align="center">{{model.Time_Start}}</td>
						<td align="center">Author:</td>
						<td id="value">{{model.News_Author}}</td>
					</tr>
					<tr>
						<td>Schlagzeile:</td>
						<td id="value">{{model.Title}}</td>
						<td align="center">Story/ Group:</td>
						<td id="value">{{or model.Group.Title model.Story.Title}}</td>
					</tr>
				</table>
			</div>
			{{log model}}
				<div align="right" id="time">AudioDuration: {{format-duration model.Time_Duration "HH:mm:ss"}}</div>
				{{#if model.quillDeltas}}
				   <div align="right" id="time">Textlänge: {{format-duration model.Time_TextDuration "HH:mm:ss"}}</div>
					{{quill-editor value=model.quillDeltas readOnly=true}}
				{{/if}}
		</div>
	</div>

	<div class="page-break"></div>

{{/if}}

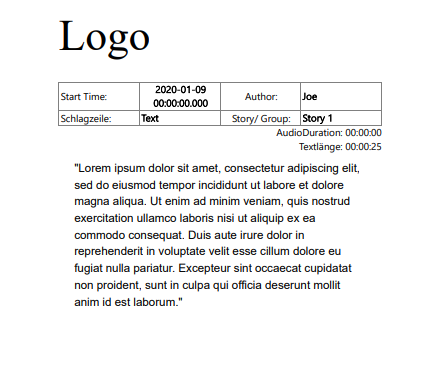

which looks like this:

Styling:

CSS can be used for applying colors and styling to the template.

CODE

<style>
    .root td {
        padding: 5px;
    }

    .root .title {
      background-color:gray;
    }
</style>

<table class= "root" style="border:1px solid black;">
 <tr>
    <td>Title</td>
    <td class="title">{{model.Title}}</td>
 </tr>
</table>

which looks like this:

Page Break:

Add the following code block at the end of the template structure to insert a page break.

CODE

<div class="page-break"></div>

Insert RTF Text:

Add the following code block to insert RTF text into the template.

CODE

{{quill-editor value=model.RTFContent readOnly=true}}

Ignore Audio Element from Printing:

If the user wants to ignore audio elements and print only entries with text, the following code can be used.

CODE

{{#if ignoreAudio}}
---- Template Structure here ----
{{/if}}

Note: This doesn't ignore audio elements with text.
