Available CellTemplateContent Values

As part of Configuring Grids in DPE Web Applications, the CellTemplateContent key enables you to customize columns using templated HTML. This freedom opens the door to a near limitless combination of column design and content.

Defining this key requires knowledge about html coding

When specifying CellTemplateContent values you can reference metadata properties using the following syntax:

Syntax	Description
^{Binding}	Will be replaced by the value referenced by your default Binding for this column. A converter specified in Converter and ConverterParameter will be applied to your default Binding.
^{{RawBinding Property}}	Will be replaced by the metadata field referenced by Property
^{{RawBinding Property\|ConverterName\|ConverterParams}}	Will be replaced by the metadata fields referenced by Property and after the specified converter is applied.

Example: Setting Background Color For Column State

Config Key	Config Value
Binding	State
CellTemplateContent	<div style="{Binding} height:22px; padding-left:3px; padding-top:4px; ">{RawBinding State}</div>
Converter	StringToStringConverter
ConverterParameter	Existing=,Recording=background-color:red; color:white;,Virtual=background-color:yellow; color: blue;

Screenshot:

Example: Signaling Flag Value With Color

Config Key	Config Value
Binding	Archiving
CellTemplateContent	<div style="background-color:{Binding}; width:10px; height:24px;">  </div>
Converter	IntToStringConverter
ConverterParameter	lightgreen,red

Screenshot:

Example: Using built-in font awesome characters to display a sign for flag columns

Config Key	Config Value
Binding	NoDelete
CellTemplateContent	<div class="{Binding}" style="color:black; width:16px; height:16px; margin-left:5px; margin-top:6px;">  </div>
Converter	IntToStringConverter
ConverterParameter	,fa davidsystems-flag-not-deleteable

Screenshot:

Available font awesome flags:

Name	Flag
davidsystems-beatmarker
davidsystems-flag-archived
davidsystems-flag-archiving
davidsystems-flag-copyright
davidsystems-flag-ok
davidsystems-flag-for-archive
davidsystems-flag-for-dearchive
davidsystems-flag-invalid
davidsystems-flag-invisible
davidsystems-flag-keyframe-exist
davidsystems-flag-loop
davidsystems-flag-lowres-exist
davidsystems-flag-new
davidsystems-flag-not-deleteable
davidsystems-flag-personal
davidsystems-flag-ready
davidsystems-flag-text
davidsystems-flag-vsat

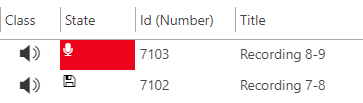

Example: Mixing font awesome characters with background color

Config Key	Config Value
Binding	State
CellTemplateContent	`<div {Binding} title="{RawBinding State}"` `></div>`
Converter	StringToStringConverter
ConverterParameter	`$$$,\|$$$Existing\|` `class="fa fa-floppy-o"` `style="color:black; height:21px; padding-left:3px; padding-top:3px; ",Recording\|` `class="fa fa-microphone"` `style="background-color:red; color:white; width:100%; height:21px; padding-right:3px; padding-left:3px; padding-top:3px;"`

Font awesome gallery: https://fontawesome.com/icons?d=gallery

Screenshot:

Example: Showing an icon in a column

SpeechToText icon

Config Key	Config Value
Binding	SPEECHTOTEXT_PLAIN
CellTemplateContent	<div class="{Binding}" style="color:black;">  </div>
Converter	IntToStringConverter
ConverterParameter	,$default$=fa fa-commenting-o

Screenshot:

Lores icon

Config Key	Config Value
Binding	LowResExists
CellTemplateContent	<div style="{Binding} margin-top:5px; margin-left:5px; width:16px; height:16px;">  </div>
Converter	IntToStringConverter
ConverterParameter	,background-image: url(import/dpe-html5-framework/core/resources/images/video.png); background-size: 100% auto;

You can also specify an external URL.

Screenshot:

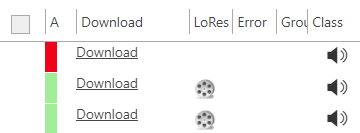

Example: Download link to main medium

Config Key	Config Value
Binding	Dummy
CellTemplateContent	<a href="/DpeWebApplication/DownloadMedium.ashx?{RawBinding FullEntryId}">Download</a>

Screenshot:

Example: SD/HD Video Format Column

Config Key	Config Value
Binding	hiMedium.Format
Converter	FormatToSdHdConverter
ConverterParameter	Default (Empty)	'SD', 'HD' or ' ' for HD video, SD video or other video
	,SD,	Labels only SD videos
	,background-image: url(http://vwwv.image.com/img.png); background-size: 100% auto;,background-image: url(audio.png); background-size: 100% auto;	Displays an image depending on the video quality.
