Available CellTemplates Values

As part of Configuring Grids in DPE Web Applications, the CellTemplate key uses predefined CellTemplateContent, e.g. CellTemplate=LoudnessEarsTemplate to display color-coded loudness ears. Please see all available templates below.

Content Manager

CellTemplate value

Description

AudioPlayerTemplate

In this column some transport buttons appear to prelisten the selected entry:


ClassCellTemplate

Shows the icons of the entry class (e.g. music, news, video, etc.)

GroupCellTemplate

Shows the icon for group in an own column to better distinguish between entries and groups. If pressed this opens the group in the group area:

ParentCellTemplate

Shows the icon for entries in an own column to see if an entry is associated to one or more groups. If pressed this opens all groups including the entry in the group area:


GroupAndParentCellTemplate

Equivalent to having both GroupCellTemplate and ParentCellTemplate:

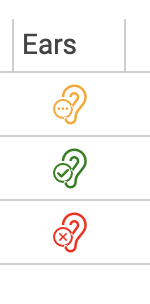

LoudnessEarsStateTemplate

Shows if the audio content of the entry is loudness compliant or not:

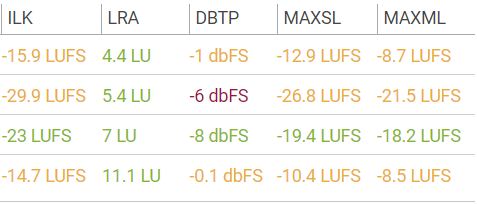

LoudnessValueUnitTemplate

Shows colored loudness values depicting loudness compliancy:

AudioOnlyCellTemplate

Shows the bound value if the main medium of the entry is of type Audio. Otherwise it shows an empty string.

This cell template can be optionally parameterized with a comma-separated string in ConverterParameter:

  • H0: return empty string also if value equals 0

  • H-1: return empty string also if value equals -1

DistributionEndpointsCellTemplate

Shows the images for endpoints specified in DAVID/DISTRIBUTIONENDPOINTS.

Preconditions:

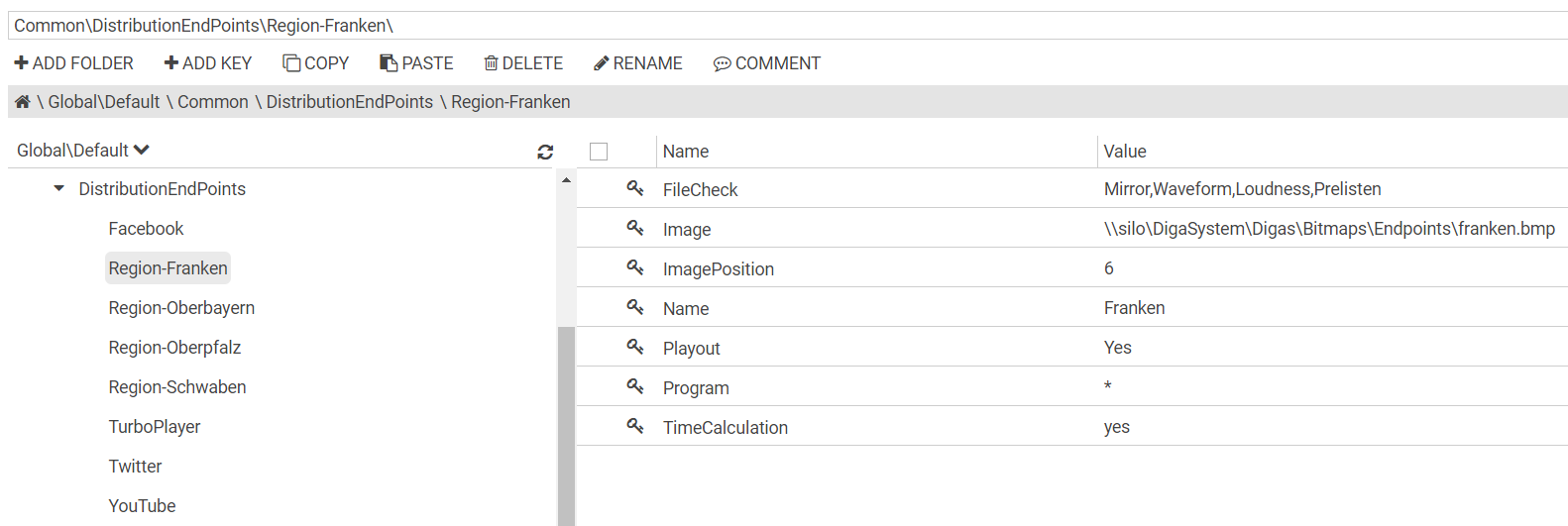

  • DigaSystem Parameters contains specified DistributionEndpoints under Common|DistributionEndpoints e.g.

  • The folder DpeWebApplication\CustomData\resources\DistributionEndPoints of the DPE Server contains the images specified for distribution endpoints

ValueToImageCellTemplate

Can show comma separated URL's from Digas field as images. Example image:

CustomData/resources/ConsistencyCheck/OK.gif?w=25&h=25&x=2&y=2

Query string parameters:

  • w: image width

  • h: image height

  • x: left position adjustment

  • y: top position adjustment

Admin

CellTemplate value

Description

ProgressTemplate

Shows a progress bar additionally to the usual status in percentage (%)

Currently only available for Workflow Monitor and Job Monitor
