AudioRenderingJobFolderToFolder Workflow

This workflow renders audio projects found in a source folder to a target format and path specified inside the project.

The workflow is usually configured via a Workflow Folder Watcher. Please see Configuring Workflow Folder Watcher for more information.

Located in DpeTemplates 2.x under AllCustomers/AudioTranscoding/AudioRenderingJobFolderToFolder.

Minimum WorkflowServer version: 2.1.19

Workflow Arguments

Name

Type

Description

Arg_File

System.String

Input project XML file.

DeleteSource

System.Boolean

If true, delete the XML project file after processing.

Default: false

ErrorFailsWorkflow

System.Boolean

If true, an error leads to setting the state of the workflow to failed.

Default: true

Job Description Xml File Format

XML

<?xml version="1.0" encoding="utf-8"?>
<TranscodingJob>
  <JobID>ABC123</JobID>
  <OutputParameters>
    <TargetAudioFormat>[FILETYPE]RAW[FORMAT]MPEG-LAYER3[BITRATE]256[SAMPLERATE]48000[MODE]STEREO</TargetAudioFormat>
    <TargetAudioPath>\\full\path\to\destination\audio\folder+filename+extension </TargetAudioPath>
    <XmlReportPath>\\full\path\to\destination\xml\folder\my-xml-filename.xml</XmlReportPath>
    <OverwriteExisting>True</OverwriteExisting> <!-- valid for Audio and Report -->
  </OutputParameters>
  <Project>
      <Clip>
          <File>\\full\path\to\file.wav</File>
          <Offset>00:06:20.067</Offset>
          <Duration>00:01:26.035</Duration>
      </Clip>
      <Clip>
          <File>\\full\path\to\another_file.wav</File>
          <Offset>00:28:43.266</Offset>
          <Duration>00:01:15.496</Duration>
      </Clip>
      <Clip>
          <File>\\full\path\to\etc\etc\etc.wav</File>
          <Offset>00:50:26.384</Offset>
          <Duration>00:00:45.953</Duration>
      </Clip>
  </Project>
</TranscodingJob>

Report Format

XML

<?xml version="1.0" encoding="utf-8"?>
<TranscodingJobResult>
  <JobID>ABC123</JobID>
  <XmlFilename>\\vm-dpedemo\Pub\Jobs\job1.xml</XmlFilename>
  <AudioFilename>\\vm-dpedemo\Pub\AudioOut1\test.mp3</AudioFilename>
  <Status>Ok</Status>
  <Message></Message>
  <Start>2020-03-25T16:50:39.1596189+01:00</Start>
  <End>2020-03-25T16:50:41.880457+01:00</End>
</TranscodingJobResult>

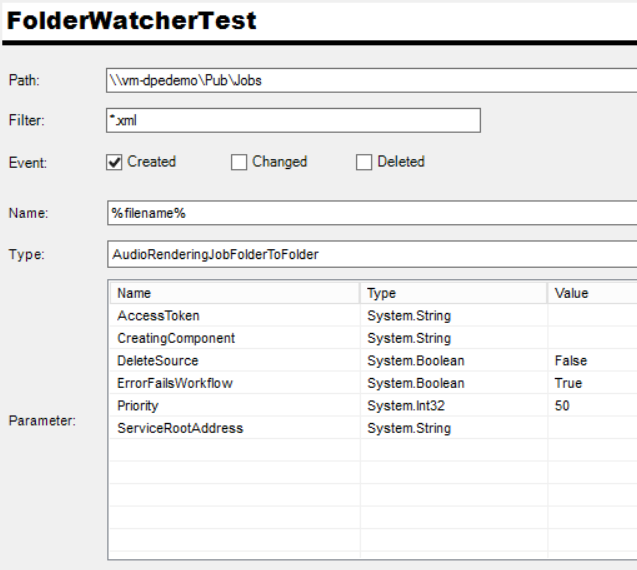

Example Folder Watcher Config
