Configuring Analytics

Default configuration

By default the following visualizations are configured:

Category “Logs”

  • Log item count for a day grouped by log level

  • Log item count/hour for a day grouped by log level

Category “Workflows”

  • Workflow instance count for a day grouped by state

  • Worfklow instance count/hour for a day grouped by state

  • Workflow instance count/hour for a day grouped by workflow type

  • Workflow instance count for a day grouped by workflow type

  • Start delay of PreProductionAudio (in milliseconds)

Category “ContentService Deadlocks”

  • ContentService deadlock retries/hour for a day

  • ContentService deadlocks grouped by source

Customizing the configuration

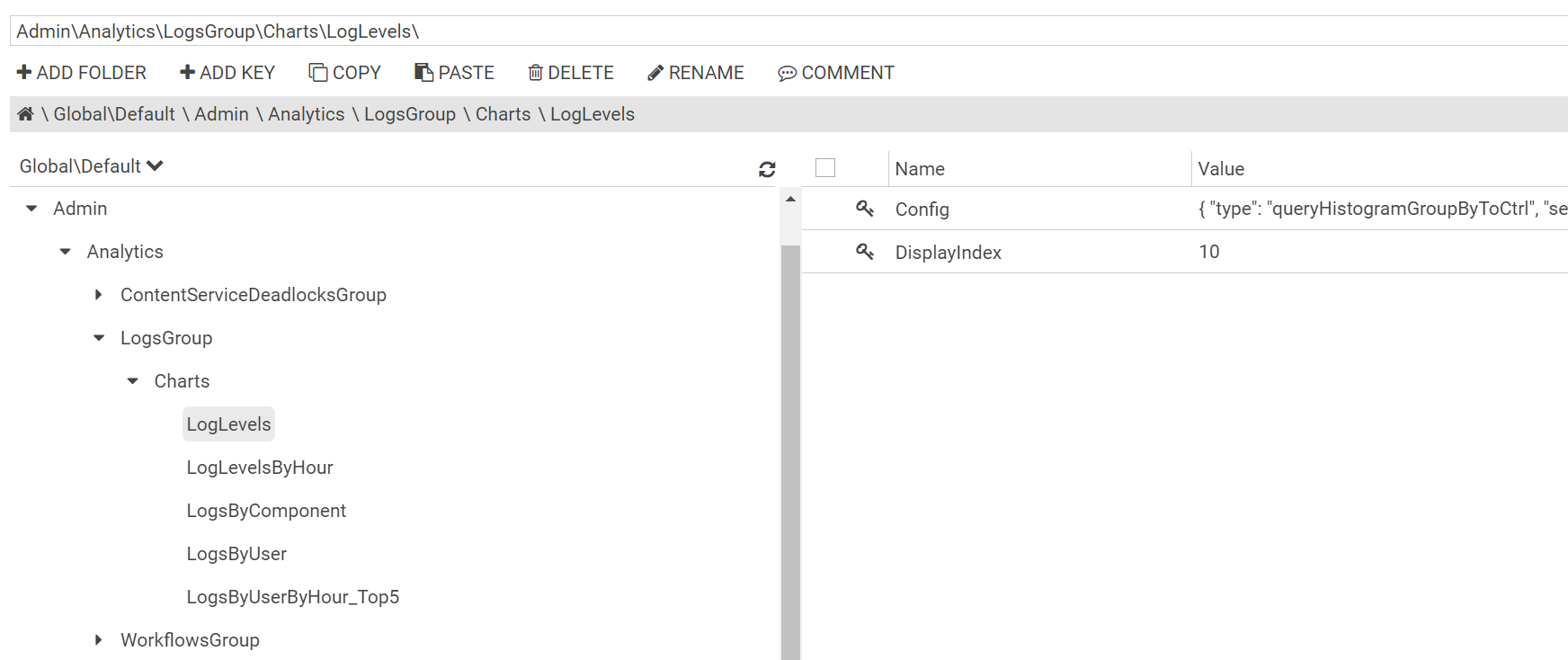

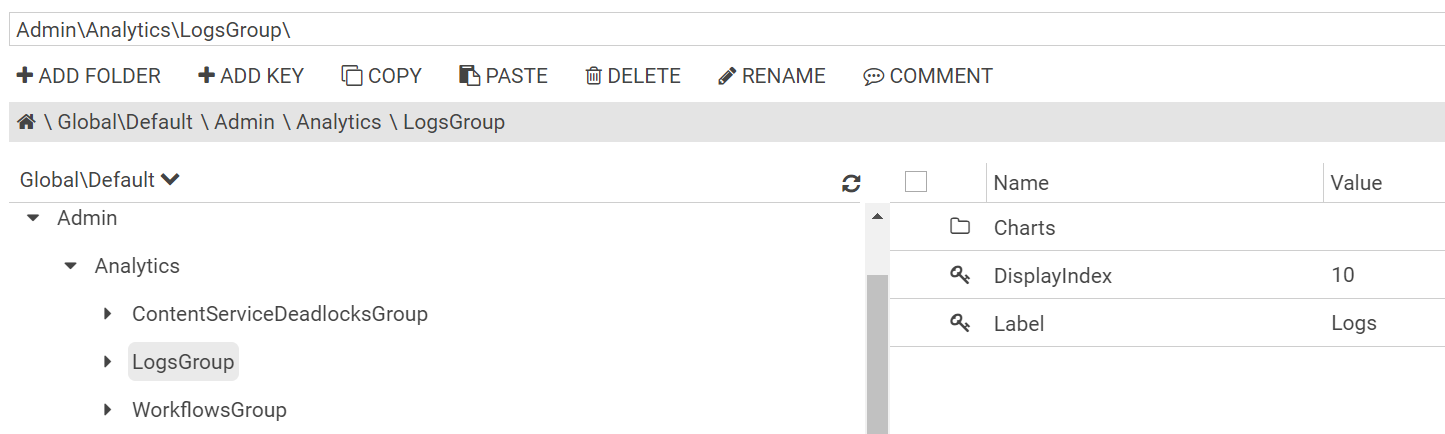

Analytics is configured in the parameter folder Admin|Analytics.

Each sub folder below defines a category name, e.g. “LogsHroup”, “WorkflowsGroup”.


A single visualization is configured in a folder Admin|Analytics|MyCategory|Charts|MyVisualization.


Examples

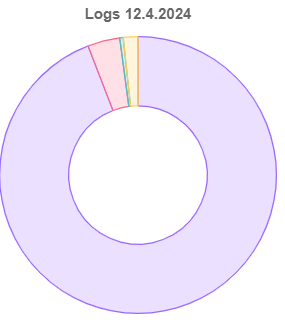

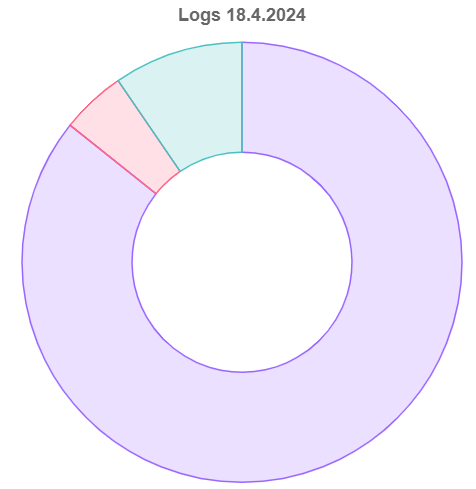

LogLevels: Log item count for a day grouped by log level


Config

JSON
{
    "type": "queryHistogramGroupByToCtrl",
    "service": "LoggingServiceProxy",
    "mode": "groupby",
    "chartType": "doughnut",
    "phrase": "Created:${day}",
    "field": "Level",
    "headline": "@Logs ${day}",
    "colorMapperCallback": "LogLevels",
    "style": "width:14%; min-width:100px;"
}

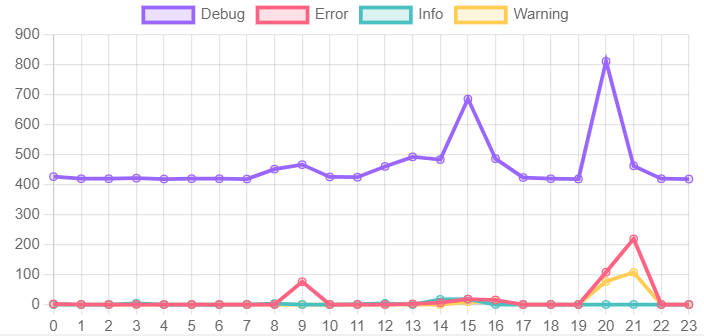

LogLevelsByHour: Log item count/hour for a day grouped by log level


Config

JSON
{
    "type": "queryHistogramsToCtrl",
    "service": "LoggingServiceProxy",
    "mode": "day",
    "phrase": [
        "Created:${day} +Level:D",
        "Created:${day} +Level:E",
        "Created:${day} +Level:I",
        "Created:${day} +Level:W"
    ],
    "name": [
        "Debug",
        "Error",
        "Info",
        "Warning"
    ],
    "field": "Created",
    "colorMapperCallback": "LogLevels",
    "headline": "@Logs "
}

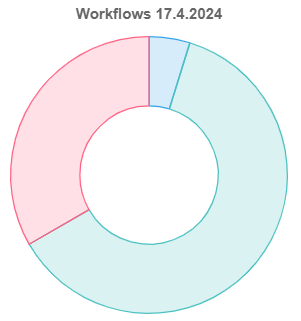

WorkflowStates: Workflow instance count for a day grouped by state


Config

JSON
{
    "type": "queryHistogramGroupByToCtrl",
    "service": "WorkflowServiceProxy",
    "mode": "groupby",
    "chartType": "doughnut",
    "phrase": "Created:${day}",
    "field": "State",
    "headline": "@Workflows ${day}",
    "colorMapperCallback": "WfStates",
    "labelAdapter": "WfStates",
    "style": "width:14%; min-width:100px;"
}

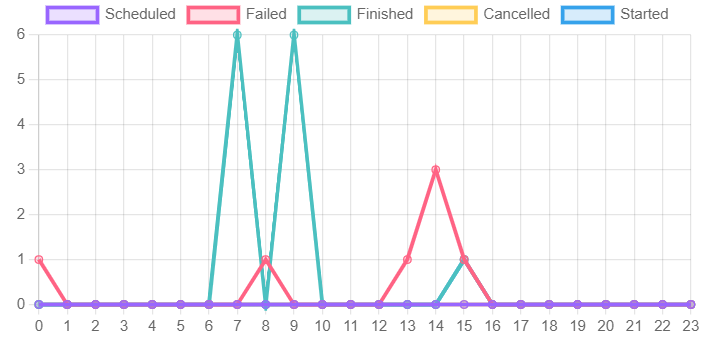

WorkflowStatesByHour: Worfklow instance count/hour for a day grouped by state


Config

CODE
{
    "type": "queryHistogramsToCtrl",
    "service": "WorkflowServiceProxy",
    "mode": "day",
    "phrase": [
        "Created:${day} +State:Scheduled",
        "Created:${day} +State:Failed",
        "Created:${day} +State:Finished",
        "Created:${day} +State:Cancelled",
        "Created:${day} +State:Started"
    ],
    "name": [
        "Scheduled",
        "Failed",
        "Finished",
        "Cancelled",
        "Started"
    ],
    "field": "Created",
    "_slotsize": 900,
    "colorMapperCallback": "WfStates",
    "headline": "Workflows "
}

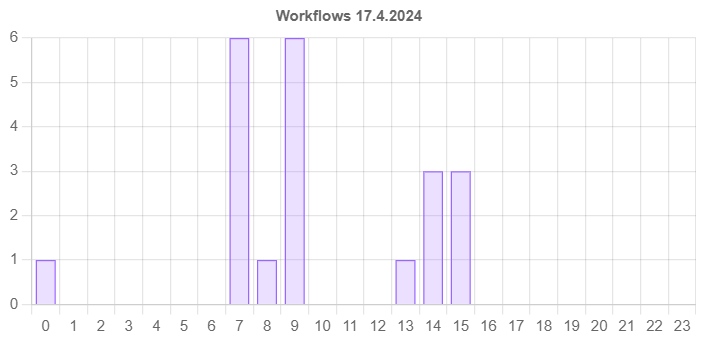

WorkflowsByHour: Workflow instance count/hour for a day grouped by workflow type


Config

JSON
{
    "type": "queryHistogramToCtrl",
    "service": "WorkflowServiceProxy",
    "mode": "day",
    "phrase": "Created:${day}",
    "field": "Created",
    "headline": "@Workflows ${day} "
}

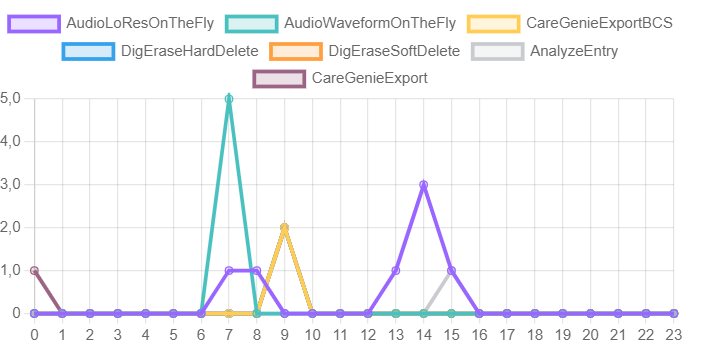

WorkflowTypesByHour_TopN: Workflow instance count/hour for a day grouped by workflow type (only show top N)


Config

CODE
{
    "type": "queryTopHistogramsToCtrl",
    "service": "WorkflowServiceProxy",
    "mode": "day",
    "phrase": "Created:${day}",
    "field": "Created",
    "topField": "WorkflowType",
    "topCount": 7,
    "headline": "Workflows "
}

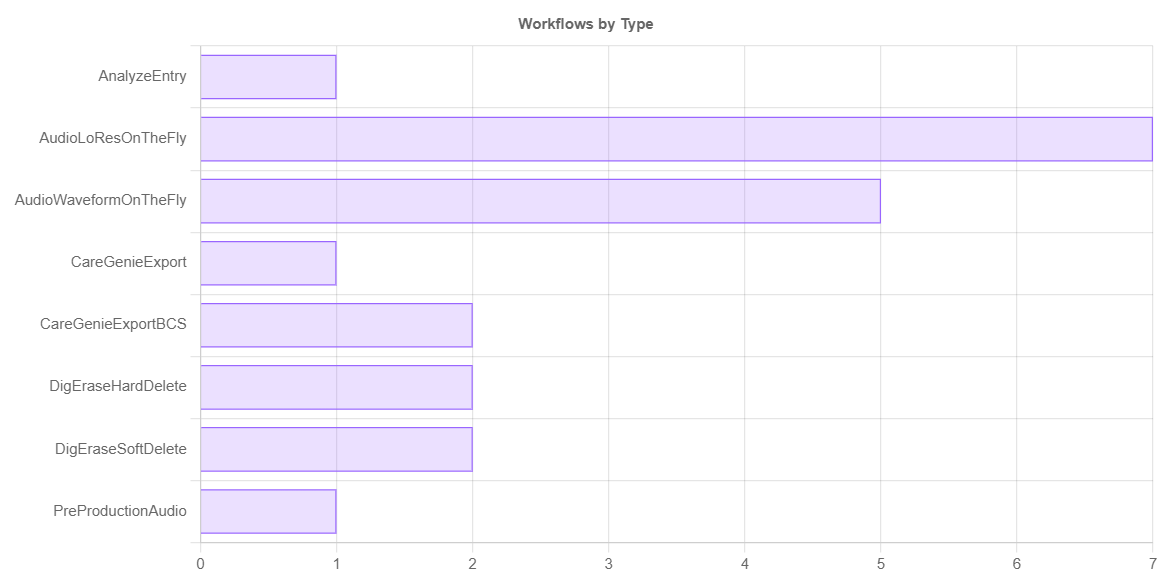

WorkflowsByType: Workflow instance count for a day grouped by workflow type


Config

CODE
{
    "type": "queryHistogramGroupByToCtrl_Callbacks",
    "service": "WorkflowServiceProxy",
    "mode": "groupby",
    "phrase": "Created:${day}",
    "field": "WorkflowType",
    "headline": "@Workflows by Type",
    "colorMapperCallback": ["rgba(153, 102, 255, 0.2)", "rgb(153, 102, 255)"],
    "_1configCallback": "indexAxis=y|scales.x.type=logarithmic",
    "_2configCallback": "scales.y.type=logarithmic",
    "configCallback": "indexAxis=y",
    "style": "width:50%"
}

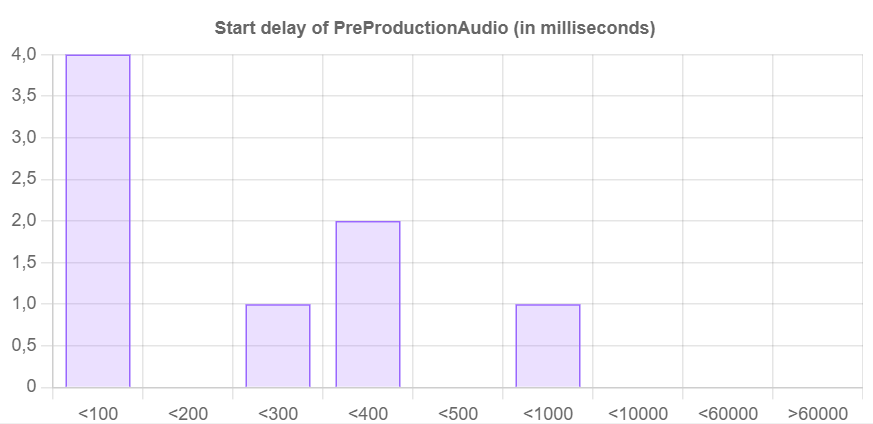

WorkflowsStartDelay_PreProductionAudio: Start delay of PreProductionAudio


Config

JSON
{
    "type": "queryHistogramGroupByToCtrl",
    "service": "WorkflowServiceProxy",
    "mode": "groupby",
    "phrase": "Created:${day} +State:Finished +WorkflowType:PreProductionAudio",
    "field": "DATEDIFF(MS,Created,Started)",
    "headline": "@Start delay of PreProductionAudio (in milliseconds)",
    "dataAdapter": "compress",
    "style": "width:50%"
}

JSON Config Description

Name

Description

service

Specifies the service to query for data

  • LoggingServiceProxy

  • WorkflowServiceProxy

type

Specifies the algorithm how the data is processed for visualization

  • queryHistogramGroupByToCtrl

  • queryHistogramGroupByToCtrl_Callbacks

  • queryHistogramsToCtrl

  • queryHistogramToCtrl

  • queryTopHistogramsToCtrl

mode

  • groupby: count-based visualization

  • day: time-based histogram, e.g. by hours

slotsize

Only used in mode “day”, specifies the granularity, default: 3600 (= 1hour)

phrase

Parameterized search phrase or array of search phrases

Example:

CODE
"phrase": "Created:${day}"

Example:

CODE
"phrase": [
        "Created:${day} +Level:D",
        "Created:${day} +Level:E",
        "Created:${day} +Level:I",
        "Created:${day} +Level:W"
    ]

field

Selected data field name (or query) for visualization

Example (for mode groupby): "field": "Level"

Example (for mode day): "field": "Created"

Example: "field": "DATEDIFF(MS,Created,Started)"

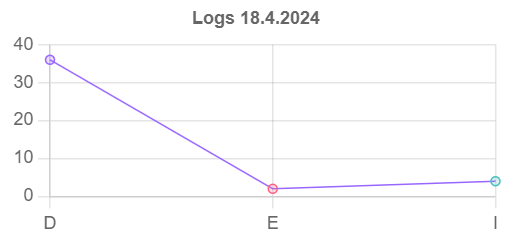

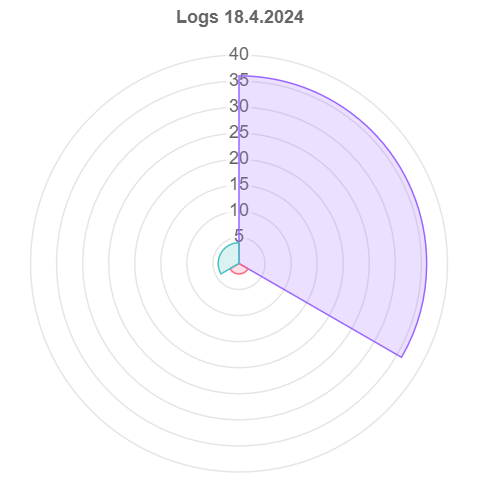

chartType

Only used for mode “groupby”

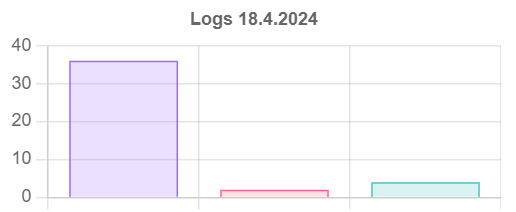

  • bar


  • line

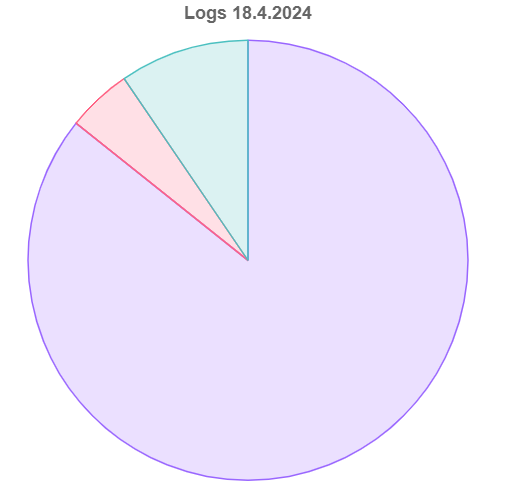

  • pie


  • doughnut


  • polarArea


Example: "chartType": "doughnut"

headline

Optionally show a headline

Example: "headline": "@Logs ${day}"

style

Apply styling to visualization widget

Example: "style": "width:50%"
