SAF Server SNMP Support

This functionality is only available if license "WorkflowSystemSNMP" is available

Many DAVID Systems software components offer SNMP support and can act as SNMP "devices" (= SNMP agents): AudioProcessor, LoudnessProcessor, VideoProcessor, UtilityProcessor and WorkflowServer.

More than one DAVID Systems component can run on a machine, each of them acting as SNMP agent (each of them must be configured to a different SNMP port; default SNMP port is 161).

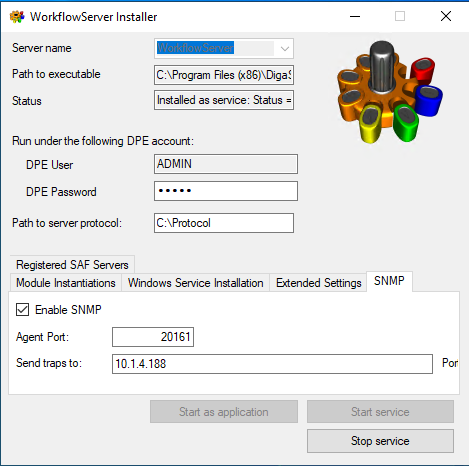

Enabling SNMP Support in SAF Server Configuration

  • The default agent port for SNMP is 161. You can configure another port if 161 is already used by another component
  • Optionally also configure an IP address and port to send SNMP trap (=event) information to

MIB Structure And File

The registered DAVID Systems vendor id is 47207, our root OID is therefore:

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).davidSysMIB(47207)

The DAVID MIB file is delivered together with DPE WorkflowServer.

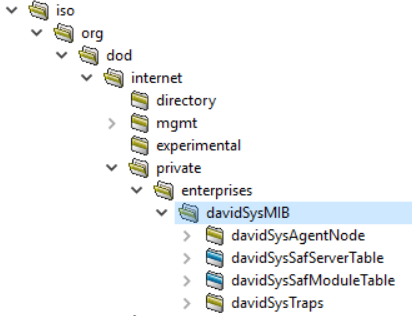

Top-level DAVID System MIB nodes


Name

ID

Description

davidSysAgentNode1Node containing generic information about the SNMP device/agent
davidSysSafServerTable2Table containing DPE SAF servers (e.g. processors)
davidSysSafModuleTable3Table containing DPE SAF modules
davidSysTraps100Root node for DAVID System traps

Monitoring Agent: davidSysAgentNode

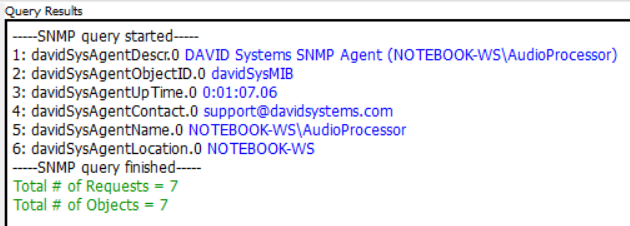

Example for an AudioProcessor test agent implementation

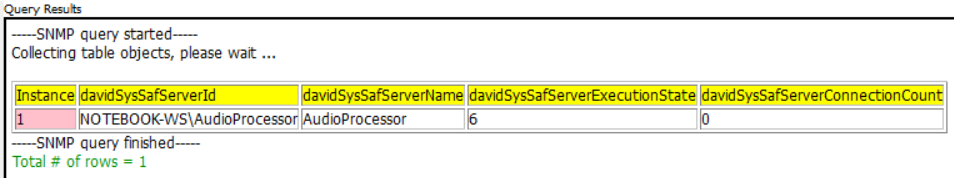

Monitoring SAF Server: davidSysSafServerTable

Name

ID

Description

davidSysSafServerId1Unique SAF server ID (machine qualified id), e.g. "MyMachine\AudioProcessor"
davidSysSafServerName2SAF server name, e.g. "AudioProcessor"
davidSysSafServerExecutionState3

Execution State.

A working and running SAF server returns 6 (= Running).

davidSysSafServerExecutionConnectionCount4Number of client connections to this SAF server, e.g. connections from SAF Admin or DPE SAF Monitor web page

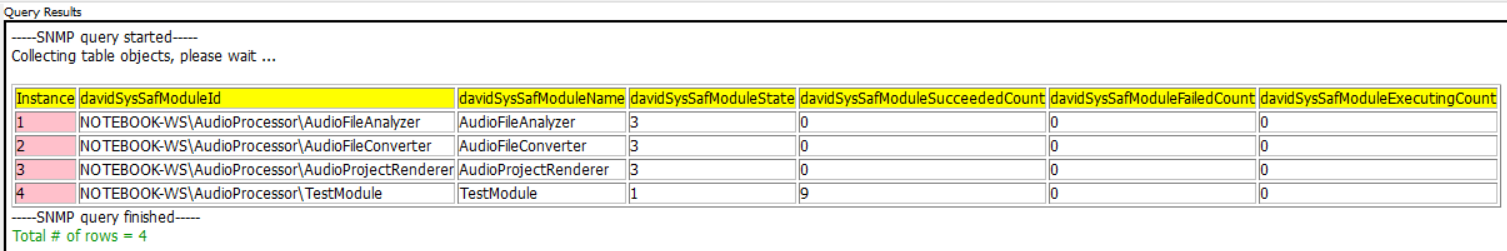

Monitoring SAF Modules: davidSysSafModuleTable

Name

ID

Description

davidSysSafModuleId1Unique SAF module id, e.g. "MyMachine\AudioProcessoe\AudioFileConverter"
davidSysSafModuleName2SAF module name, e.g. "AudioFileConverter"
davidSysSafModuleState3

Module execution state.

2 (WaitingForDue) and 3 (Executing) correspond to an activate module.

davidSysSafModuleSucceededCount4Number of succeeded jobs since last restart.
davidSysSafModuleFailedCount5Number of failed jobs since last restart.
davidSysSafModuleExecutingCount6Number of currently executing jobs.


Traps

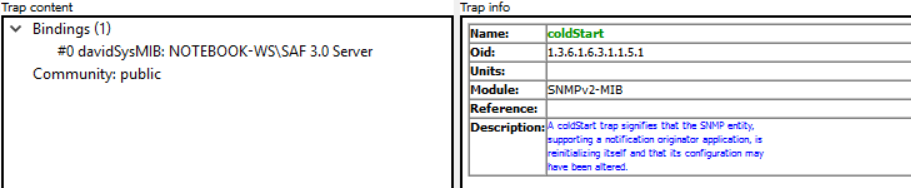

Agent Cold Start

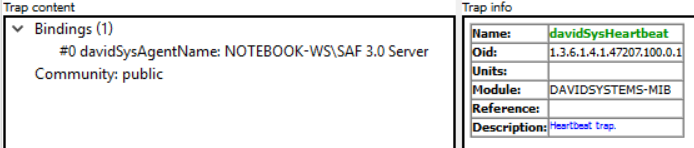

Agent Heartbeat

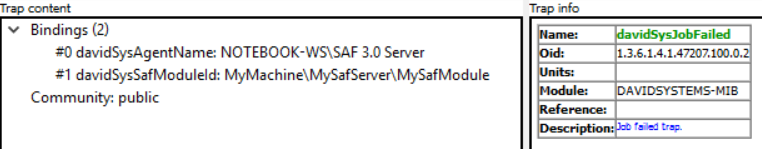

JobFailed
