Unattended Rundown Broker installation using a batch file on a local computer

Installation scenario

The unattended installation via a batch file is ideal for installing Rundown Broker on a local computer when all configuration parameters are known in advance.

Installation Instructions

Copy the complete installation folder (Setup) into a local directory, because access to mounted network drives may conflict with elevated privileges required during the installation process. The local folder is referred as <local_Rundown_Broker_Setup_folder>.

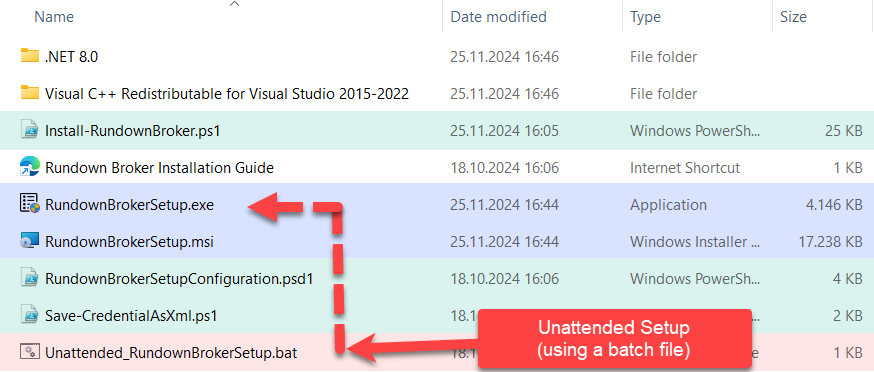

Rundown Broker setup folder

Open the file Unattended_RundownBrokerSetup.bat with your favorite text editor (or Notepad)

BASH

RundownBrokerSetup.exe /L*V setup.log /qn ^
APPDIR="C:\Program Files\DigaSystem\Rundown Broker\" ^
USER_NAME="username" ^
DOMAIN_NAME="domain" ^
USER_PASSWORD="password" ^
START_SERVICE="Checked" ^
DPE_URL="https://mydomain.com/DpeWebApplication/" ^
DPE_USER="dpeUser" ^
DPE_PASSWORD="dpePassword" ^
ROAD_REST_ADDRESS="http://localhost:11003"

Adjust at least

USER_NAME,
DOMAIN_NAME,
USER_PASSWORD,
DPE_URL,
DPE_USER,
DPE_PASSWORD,
ROAD_REST_ADDRESS

with the appropriated values for your company. For a description of the setup properties see the https://davidsystems.atlassian.net/wiki/spaces/LRS/pages/edit-v2/946962436?draftShareId=248faeea-7143-4a81-ab0c-3c2513f45ac5#Setup-Properties below.

Save the new text file as Unattended_RundownBrokerSetup.bat in the <local_Rundown_Broker_Setup_folder> folder.
Open a command line window with elevated rights by press Windows+R, to open the Run dialog, type cmd and press Ctrl+Shift+ENTER.
Change the current directory to the <local_Rundown_Broker_Setup_folder> folder.
Type Unattended_RundownBrokerSetup.bat to start the installation.

If the installation was successful, the Rundown Broker Service is started.

Setup Properties

Properties are (among other) the data which the user would normally enter into the installer's GUI. Properties come as pairs of name and value. You can set properties for unattended setup on the command line by adding value=name pairs after all command line switches. Use quotation marks for values which contains spaces.

Property name	Explanation	Example	Type	Allowed values	Default value
APPDIR	The directory where Rundown Broker is to be installed.	C:\RundownBroker\	string	a valid folder	C:\Program Files\DigaSystem\Rundown Broker\
USER_NAME	The user name of the credentials under which the Rundown Broker service should run	myname	string		(empty)
DOMAIN_NAME	The domain of the user name for the credentials under which the Rundown Broker service should run	domainname	string		(empty)
USER_PASSWORD	The password of the credentials under which the Rundown Broker service should run	mypassword	string		(empty)
START_SERVICE	Start service after installation. (empty) means START_SERVICE=""	(empty)	string	(empty), Checked	Checked
DPE_URL	URL of DPE	http://dpehost	url		(empty)
DPE_USER	Name of DPE user.	dpeuser	string		(empty)
DPE_PASSWORD	Password of DPE user.	****	string		(empty)
ROAD_REST_ADDRESS	The URL for accessing ROAD Service including port number	https://myroadhost:11003	url		http://localhost:11003

Environment variables can be used. E.g., %ProgramFiles%\My Rundown Broker would expand to C:\Program Files\My Rundown Broker
