Configure common Parameters for all clients

Currently many ROAD clients are only usable in combination with DPE. On this page, we will show you how to link DPE to them.

Create ROAD Clients' Base Configuration

Import the sample parameter file shipped with the ROAD clients

The ROAD client applications ship with each a sample .par file (ROAD_Admin.par, InstaRecorder.par, ROAD_Scheduling.par) in the doc/ folder which contains the base configuration for each ROAD client.
Import this parameter file into the Global\Default space in DPE Parameters.

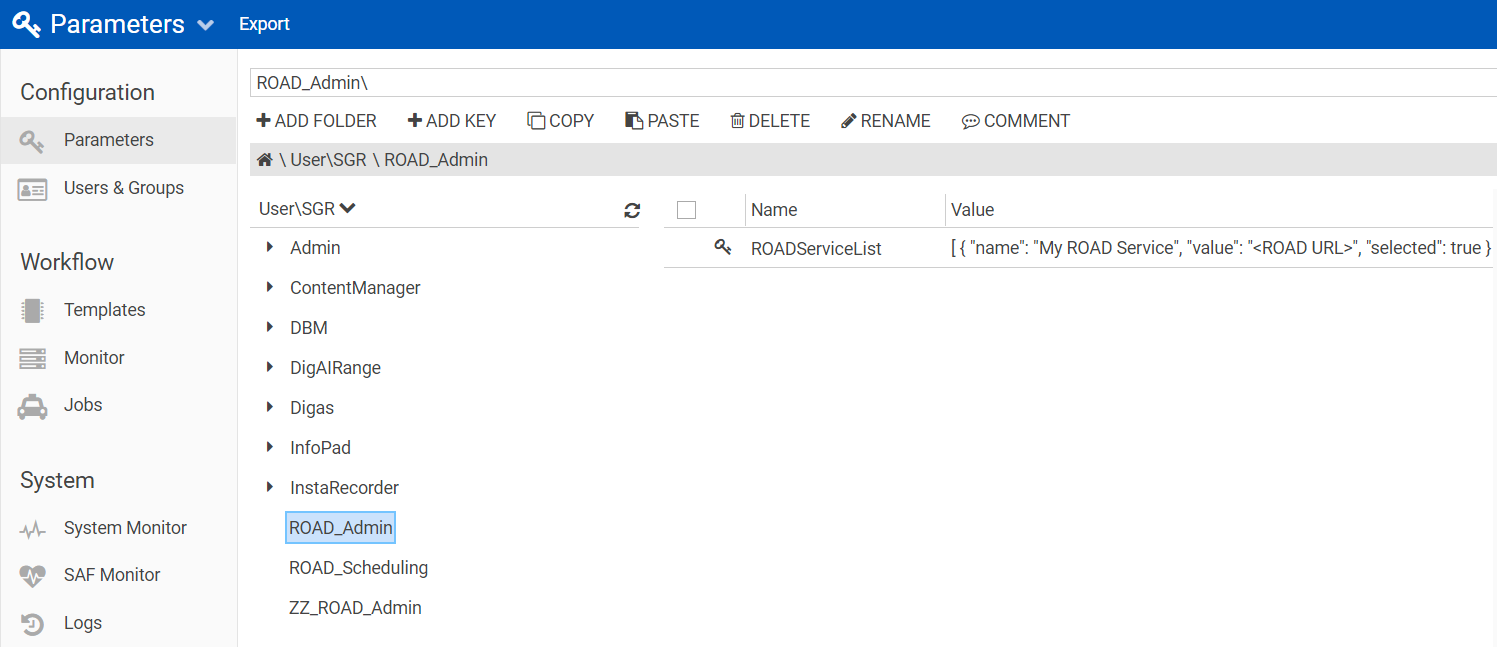

Your DPE Parameters should look like this (folder named according to the client):

Configure which ROAD Service(s) the ROAD Clients Should Connect to

All ROAD clients connect to a backend ROAD Service instance, which needs to be configured.

Better be secure!

Both HTTP and HTTPS connections are supported, HTTPS being recommended in most cases.

ROAD Service(s) for ROAD Admin and Scheduling

This parameter is mandatory for each ROAD client which is installed: Parameter location is ROAD_Admin\ROADServiceList or ROAD_Scheduling\ROADServiceList (note InstaRecorder currently supports only one ROAD Service via parameter RoadServiceUrl; see below)

ROADServiceList: example

JS

[
  {
    "name": "My ROAD Service",
    "value": "https://my-road-service.internal.com:11005",
    "selected": true
  },
  {
    "name": "My ROAD Service 2",
    "value": "https://my-road-service2.internal.com:11005",
    "selected": false
  }
]

name is the human-readable name for your ROAD Service
value is the URL (including protocol and port) of where the ROAD client is hosted
selected should be set to true to select your default or favorite ROAD Service

In most environments, we expect this list to contain only one ROAD Service. In case multiple ROAD Services are configured, a ROAD Service selector will appear in the top bar in the ROAD client application.

ROAD Service for InstaRecorder

This parameter is mandatory for InstaRecorder: Parameter location is InstaRecorder\RoadServiceUrl

RoadServiceUrl: example

CODE

InstaRecorder\RoadServiceUrl = https://my-road-admin.internal.com:11005/

Add the link to ROAD client in DPE

Import the sample parameter file shipped with the ROAD clients

The ROAD Admin application ships with a ROAD_Admin_Content_Manager_link.par which contains the base configuration for configuring Content Manager to display a link to ROAD Admin.
The ROAD Scheduling application ships with a ROAD_Scheduling_Content_Manager_link.par which contains the base configuration for configuring Content Manager to display a link to ROAD Scheduling.

Import the parameter file into the Global\Default space in DPE Parameters.

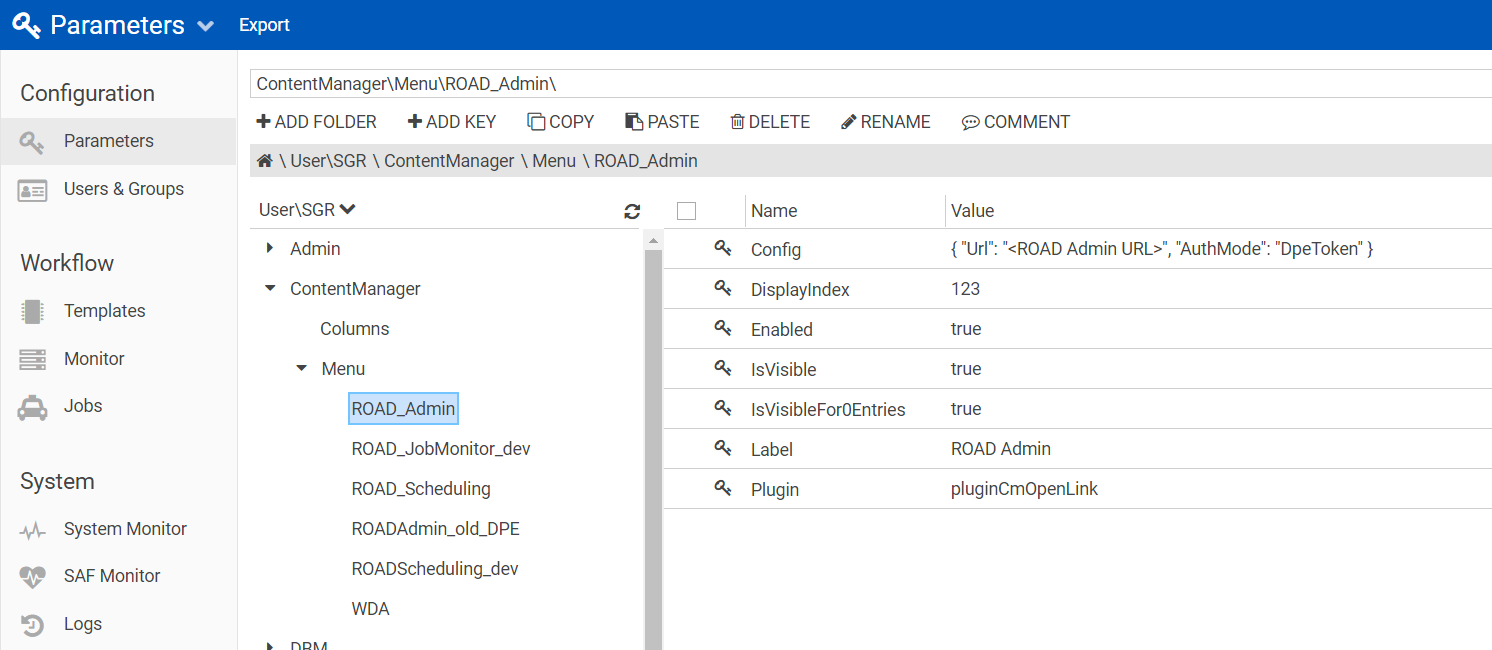

Your DPE Parameters should look like this:

Here is the general DPE documentation on how to configure this: Open Link in New Tab

Configure the URL of ROAD Client

In the Config key, replace <ROAD Admin URL> to the full URL where ROAD client is hosted:

ContentManager \ Menu \ ROADScheduling \ Config : example

JS

{
  "Url": "http://my-road-admin.internal.com:8080/",
  "AuthMode": "DpeToken"
}

Url is the URL (including protocol and port) of where the ROAD Admin client is hosted
AuthMode should be set as "DpeToken". This way the authentication and authorization will be set when clicking on the link in DPE's menu

This configuration is currently mandatory for ROAD Admin and ROAD Scheduling! Currently these ROAD clients only supports authentication through DPE Token, so ROAD Admin needs to be launched through DPE to work.

Optional Configuration

Clients showing data in a list use a default set of columns for it. Users can change the order and width of these columns. Those changes are stored in user parameters.

It is possible to change the defaults on global level, which includes adding or removing specific columns.

The respective parameter locations are

ROAD_Admin\Jobs\Columns
ROAD_Scheduling\Schedules\Columns

There you can set the parameter "Current", which contains a comma-separated list of column names, each with a value for the width.

ROAD client column configuration example

CODE

Current = name=557,currentState=100,createdTime=180,updatedTime=147,processingHost=150

Supported Columns for ROAD Admin

ROAD Admin can be configured to show these columns:

Jobs

name
currentState
createdTime
updatedTime
processingHost
alias

Hosts

name
isrunning
serviceversion
url
socketaddress
isdeprecated
lastalivetime

Templates

name
templateId

Supported Columns for ROAD Scheduling

ROAD Scheduling can be configured to show these columns:

name
description
nextOccurrence
timezone
workerHost
alias
templateName
templateDescription
scheduleId (not shown by default)
templateId (not shown by default)

Further Configuration

For InstaRecorder there's more Digas configuration options described in sub-page Configure InstaRecorder.
