Unattended TPS Setup (by command line)

This page describes the installation of TurboPlayer Service from the command line.

Usage scenario

First, the unattended installation via command line is ideal for installing on a local computer when all configuration parameters are known in advance.

Second, the command line installation is particularly useful for upgrade installations, where an older version of TurboPlayer Service is already installed and functioning.

Installation Procedure

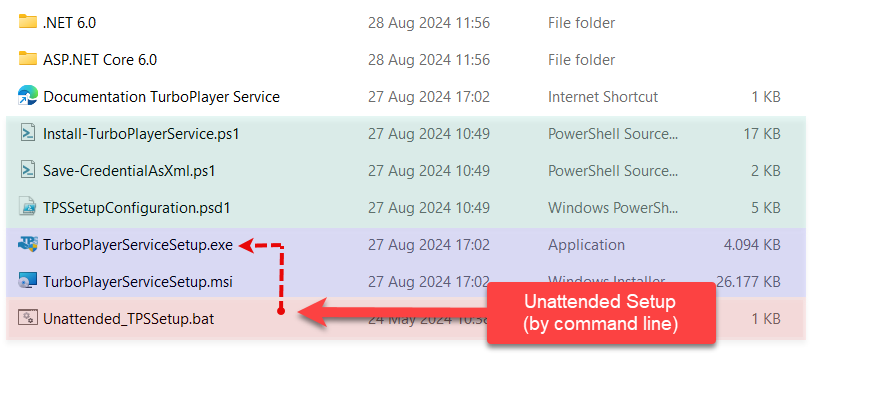

Setup Folder

Unattended_TPSSetup.bat is an example batch file that can be used as a template for unattended setup via the command line.

TurboPlayerServiceSetup.exe, TurboPlayerServiceSetup.msi, the .Net 6.0 Runtimes (x86, x64) and the ASP .NET Core 6.0 Runtimes (x86, x64) are required for installing the TurboPlayer Service from the command line.

We recommend to copy the complete installation folder (Setup) into a local directory, because access to mounted network drives may conflict with elevated privileges required during the installation process.

Installation with a batch file

Open the file Unattended_TPSSetup.bat with your favorite text editor (or Notepad)

BASH

TurboPlayerServiceSetup.exe /L*V setup.log /qn ^
APPDIR="C:\Program Files (x86)\DigaSystem\TurboPlayer Service\" ^
USER_NAME="username" ^
DOMAIN_NAME="domain" ^
USER_PASSWORD="password" ^
START_TURBOPLAYER_SERVICE="Checked" ^
DPE_URL="https://mydomain.com/DpeWebApplication/" ^
DPE_USER="dpeUser" ^
DPE_PASSWORD="dpePassword" ^
CONNECTION_USE_SECURE_PROTOCOLS="SecureProtocols" ^
CERTIFICATE_THUMBPRINT="01234567890abcdef01234567890abcdef012345" ^
CONNECTION_DNS_NAME="%COMPUTERNAME%.mydomain.com" ^
CONNECTION_WEBSOCKET_PORT="8091" ^
DIGASYSTEM_CONFIGURATION="myTPServiceConfig" ^
DIGASYSTEM_COMPUTER_REGISTRY="%COMPUTERNAME%" ^
DIGASYSTEM_TURBOPLAYER_CONFIGURATION="myTurboPlayerConfig" ^
DIGASYSTEM_TURBOPLAYER_GUI_NUMBER=2

Adjust at least
- USER_NAME,
- DOMAIN_NAME,
- USER_PASSWORD,
- DPE_URL,
- DPE_USER,
- DPE_PASSWORD,
- CERTIFICATE_THUMBPRINT
- DIGASYSTEM_COMPUTER_REGISTRY and
- DIGASYSTEM_TURBOPLAYER_CONFIGURATION

with the appropriated values for your company. For a description of the setup properties see the https://davidsystems.atlassian.net/wiki/spaces/LTPS/pages/edit-v2/349077523#Setup-Properties below.

Save the new text file as Unattended_TPSSetup.bat in the folder where TurboPlayerServiceSetup.exe is located.
Open a command line window with elevated rights by press Windows+R, to open the Run dialog, type cmd and press Ctrl+Shift+ENTER.
Change the current directory to the path where TurboPlayerServiceSetup.exe is located.
Type Unattended_TPSSetup.bat to start the installation.

For an upgrade installation that requires no changes to the configuration, instead of a batch file simply use the command line

BASH

TurboPlayerServiceSetup.exe /L*V setup.log /qn

All configuration settings from the previous installation are preserved.

(The parameter /L*V setup.log directs the system to create a verbose log in the file named setup.log. The /qn parameter specifies that the installation should proceed without user interaction.)

If the installation was successful, the TurboPlayer Service is started.

TurboPlayer Service Connection Check

The installation directory contains a Connection Test HTML page (C:\Program Files (x86)\DigaSystem\TurboPlayer Service\TurboPlayerServiceTest.html ). Open the TurboPlayer Service Connection Check page by double-clicking on TurboPlayerServiceTest.html

Click Open WebSocket Connection button. The Connection Status should change to WebSocket Connection is open.
Click GetVersion button. The Result column should display the version number of the installed TurboPlayer service.
Enter a valid DigaSystem credentials (Username and Password) which has the required rights to monitor or control TurboPlayer.
Click Login. The Result column should display OK.
Click Heartbeat. The Result column should display OK.
Click GetGlobalStatus. If the Result column displays Service has not license, see License File

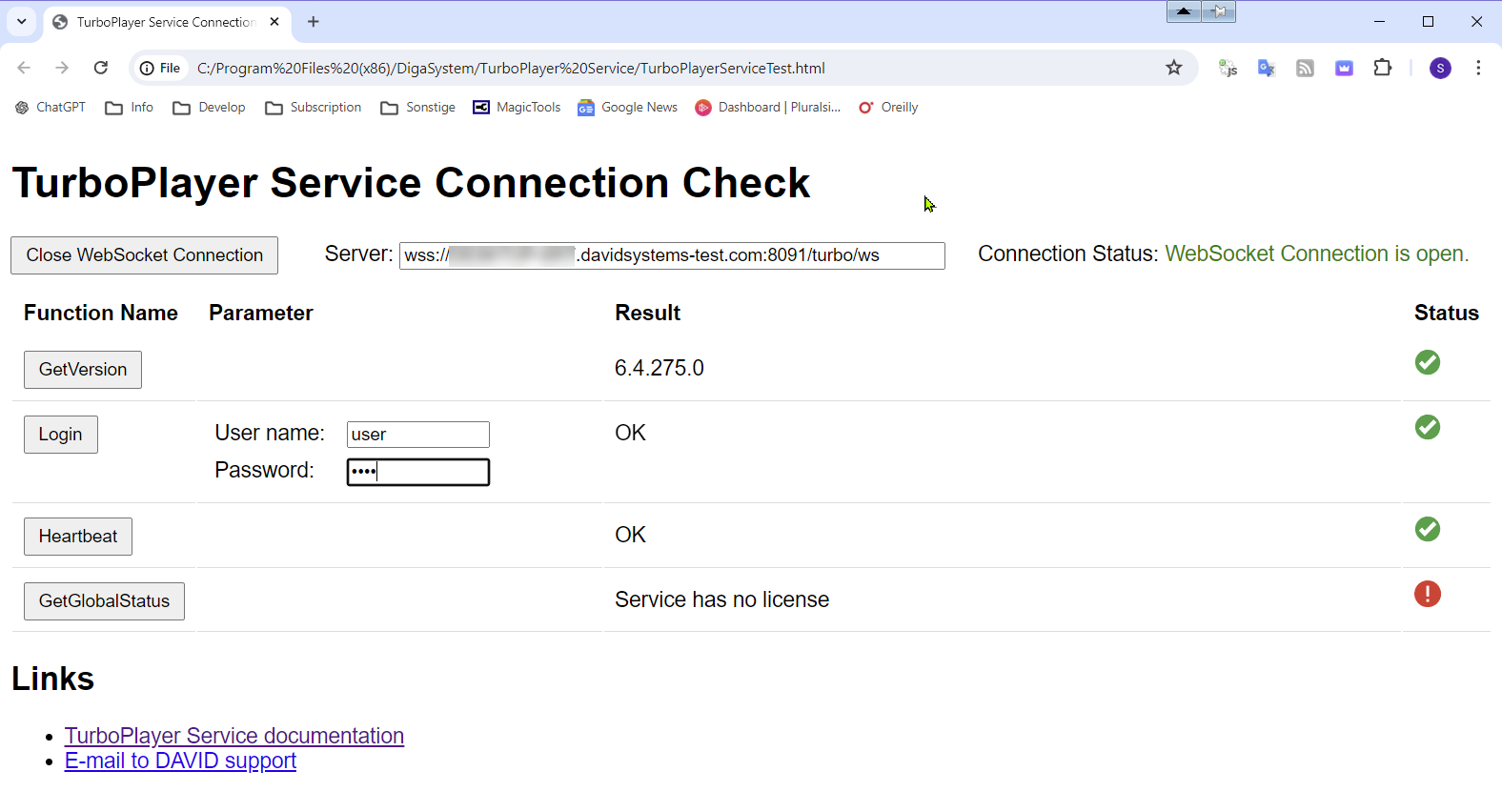

*TurboPlayer Service* Connection Check Test Page

Continue with the Post-installation requirements

Setup Properties

Properties are (among other) the data which the user would normally enter into the installer's GUI. Properties come as pairs of name and value. You can set properties for unattended setup on the command line by adding value=name pairs after all command line switches.

Property name	Explanation	Example	Type	Allowed values	Default value
APPDIR	The directory where TurboPlayer Service is to be installed.	C:\TurboPlayerService\	string	a valid folder	C:\Program Files (x86)\DigaSystem\TurboPlayer Service\
USER_NAME	The user name of the credentials under which the TP service should run	myname	string		(empty)
DOMAIN_NAME	The domain of the user name for the credentials under which the TP service should run	domainname	string		(empty)
USER_PASSWORD	The password of the credentials under which the TP service should run	mypassword	string		(empty)
START_TURBOPLAYER_SERVICE	Start service after installation. (empty) means START_TURBOPLAYER_SERVICE=""	(empty)	string	(empty), Checked	Checked
DPE_URL	URL of DPE	http://dpehost	url		(empty)
DPE_USER	Name of DPE user.	dpeuser	string		(empty)
DPE_PASSWORD	Password of DPE user.	****	string		(empty)
CONNECTION_USE_SECURE_PROTOCOLS	Specifies whether secure protocols (https/wss) or unsecure protocols (http/ws) should be used for the connection between a web client and TurboPlayer Service	SecureProtocols	string	UnsecureProtocols, SecureProtocols	UnsecureProtocols
CERTIFICATE_THUMBPRINT	The thumbprint value of the SSL certificate. The thumbprint is only used if CONNECTION_USE_SECURE_PROTOCOLS is “SecureProtocols“	01234567890abcdef01234567890abcdef012345	string	string that consists of 40 hexadecimal characters without spaces.	(empty)
CONNECTION_DNS_NAME	The DNS name of the computer. The DNS name must match the Common Name (CN) of the SSL certificate which is specified by the thumbprint CERTIFICATE_THUMBPRINT.	myComputer.example.com	string	<URL>	(empty)
CONNECTION_WEBSOCKET_PORT	The port number of the WebSocket connection.	8091	int	1-65535	8091
DIGASYSTEM_CONFIGURATION	Name of TurboPlayer Service configuration	myTpsConfig	string		(empty)
DIGASYSTEM_COMPUTER_REGISTRY	Name of the computer where TurboPlayer engine is running and which TurboPlayer service should control.	tpHost	string		(empty)
DIGASYSTEM_TURBOPLAYER_CONFIGURATION	Name of an existing TurboPlayer configuration which specifies the connection properties to the TurboPlayer Engine.	TurboPlayer	string		(empty)
DIGASYSTEM_TURBOPLAYER_GUI_NUMBER	The number which specify the ports used to communicate between the GUI and the engine. All GUI Numbers of TurboPlayer GUIs and TurboPlayer Services which connect to a specific TurboPlayer Engine must be different. Incorrectly configured GUI Numbers can cause TurboPlayer to freeze, which can lead to a disruption in on-air playout.	3	int		2

Note: Environment variables can be used e.g., "%ProgramFiles%\My TPS" would expand to "C:\Program Files\My TPS"
