Configuring User Masks

The user masks of shows, groups, stories and elements can be freely configured in XML files. These files can be found in the "masks/" subdirectory. The XML root is called <xml> with nested nodes as described below.

Example

XML

<xml>
	<input name="Title" bcsField="Title" />
	[...]
</xml>

Text

Displays a value as static text.

Example

XML

<text name="ID" bcsField="id" />

Input

Displays a value in an HTML input field.

Format

Format the values from milliseconds to "HH:mm:ss" is possible by setting "timestamp" to the format parameter.

Readonly

Setting readonly to true renders the value in a read-only input form.

Example

XML

<input name="Title" bcsField="Title" />

<input name="Title" bcsField="Time_Start" format="timestamp" />

<input name="Title" bcsField="Title" readonly="true" />

Select

Displays a selection input with custom options.

Readonly

Setting readonly to true renders the value in a read-only input form.

Example

XML

<select name="Start Mode" bcsField="Time_StartMode">
	<option name="Manual" value="Manual" />
	<option name="Relative" value="Relative" />
</select>

Check box

Displays a check box, which can be checked or unchecked, depending on the value of the field being true or false.

Readonly

Setting readonly to true renders the value in a read-only input form.

Example

XML

<checkbox name="Rebroadcast show" bcsField="Rebroadcast" />

<checkbox name="Rebroadcast show" bcsField="Rebroadcast" readonly="true"/>


Uses the value as URL to display an image.

Example

XML

<image name="Cover" bcsField="CUSTOM.Cover" />

Player

Displays a prelisten player with controls for markers.

Hint: This control is intended for elements only.

Example

XML

<player />

Speaker Selection

Displays a specialized speaker selection menu.

Note: Available for Show and Element masks only.

Example

XML

<input name="Speaker" format="speaker" />

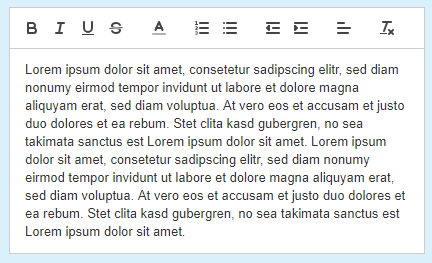

RTF Editor

Displays a RTF Editor for elements.

Hint: This control is intended for elements with text only.

Example

XML

<rtfeditor />

External

Displays a button to open an iframe in a pop up window.

Note: For more information see the file "external_example.html" inside the "masks/" directory.

Icon

The icon parameter can be set to any Bootstrap Glyphicon.

Example

XML

<external name="Cover Selection" url="http://cover-service/select/" bcsField="CUSTOM.Cover" caption="Open Popup" />

Tabs

Tabs can be used to structure the form components in groups.

Example

XML

<xml>
    <tab name="General">
        <input name="Title" bcsField="Title" />
    </tab>
    <tab name="Fades">
        <input name="Duration" bcsField="Time_Duration" format="timestamp" />
    </tab>
</xml>

Filtered Tabs

Tabs can be filtered to be shown for elements of certain classes only.

Example

XML

<tab name="Fades" filter="Class=Audio">[...]</tab>

These filters follow a simple syntax and can contain equal (=), not-equal (!=) and or (|) operators.

Example

XML

<tab name="Fades" filter="Class=Audio|News">[...]</tab>
<tab name="Fades" filter="Class!=Text|Info">[...]</tab>

Note: Do not use spaces to format the syntax.
