Adding merge-check-box component

Merge-check-box is s type of check-box supporting bulk update.

CODE

{{merge-check-box model=editModelArray field="Perfect"}}

Where,

merge-check-box is the component name ("fixed").
model takes the array of editable models of selected entries ("configurable"). Use "editModelArray" in editable mode and "model" in non-editable mode.
field is the metadata binding name ("configurable").

States

This component offers three possible states in the UI:

Checked state : When all the entries in selection have Boolean field value set to true or 1.
Unchecked state : When all the entries in selection have Boolean field value set to false or 0.
Intermediate state : When either of the entries in selection has Boolean value different than others.

Custom fields ('true'/'false' or '1'/'0')

To update the entry field with 'true' if checked or 'false' if unchecked, use the customFieldType property:

CODE

{{merge-check-box stateChanged=$changeLOUDNESS$DISABLE model=editModelArray customField="LOUDNESS/DISABLE" customFieldType="boolean"}}

By default, merge-check-box uses the values '1' if checked and '0' if unchecked.

Using 'true'/'false' is not supported by the merge-check-box for plain entry fields, just for custom fields.

Colored Visualization

Here is an example with custom styled merge-check-box:

CODE

<tr>
<td>{{check-box checked=$changeInvalid}}<label>Invalid (custom style):</label></td>
<td>{{merge-check-box stateChanged=$changeInvalid defaultLayout=false model=editModelArray field="Invalid" icon="fas fa-bomb" label="INVALID" iconFontSize="25px" backgroundColorOn="lightcoral" width="110px"}}</td>
</tr>

More at Adding editable check-box component

Direct Edit Mode

Not yet supported

Custom Flags

Not yet supported

Example Configuration

CODE

{{#form-container legacyController=legacyController $changePerfect=false $changeReady=false $changeNoDelete=false $changeInvalid=false}}
	{{#if editable}}
        {{#responsive-grid-area}}
            <div data-col="sm-4 xs-12 valign-sm-center valign-xs-bottom">
				{{check-box checked=$changePerfect}}
				<label style="padding-left:5px">Change Perfect:</label>
			</div>
            <div data-col="sm-8 xs-12 valign-center" class="editable-field">
				{{merge-check-box stateChanged=$changePerfect model=editModelArray field="Perfect"}}
			</div>

            <div data-col="sm-4 xs-12 valign-sm-center valign-xs-bottom">
				{{check-box checked=$changeReady}}
				<label style="padding-left:5px">Change Ready:</label>
			</div>
            <div data-col="sm-8 xs-12 valign-center" class="editable-field">
				{{merge-check-box stateChanged=$changeReady model=editModelArray field="Ready"}}
			</div>

            <div data-col="sm-4 xs-12 valign-sm-center valign-xs-bottom">
				{{check-box checked=$changeNoDelete}}
				<label style="padding-left:5px">Change Delete protected:</label>
			</div>
            <div data-col="sm-8 xs-12 valign-center" class="editable-field">
				{{merge-check-box stateChanged=$changeNoDelete model=editModelArray field="NoDelete"}}
			</div>

            <div data-col="sm-4 xs-12 valign-sm-center valign-xs-bottom">
				{{check-box checked=$changeInvalid}}
				<label style="padding-left:5px">Change Invalid:</label>
			</div>
            <div data-col="sm-8 xs-12 valign-center" class="editable-field">
				{{merge-check-box stateChanged=$changeInvalid model=editModelArray field="Invalid"}}
			</div>
        {{/responsive-grid-area}}
    {{else}}
        {{#responsive-grid-area}}
            <div data-col="sm-4 xs-12 valign-sm-center valign-xs-bottom">
				Perfect:
			</div>
            <div data-col="sm-8 xs-12 valign-center">
				{{merge-check-box model=model field="Perfect" readonly=true}}
			</div>

            <div data-col="sm-4 xs-12 valign-sm-center valign-xs-bottom">
				Ready:
			</div>
            <div data-col="sm-8 xs-12 valign-center">
				{{merge-check-box model=model field="Ready" readonly=true}}
			</div>

            <div data-col="sm-4 xs-12 valign-sm-center valign-xs-bottom">
				Delete protected:
			</div>
            <div data-col="sm-8 xs-12 valign-center">
				{{merge-check-box model=model field="NoDelete" readonly=true}}
			</div>

            <div data-col="sm-4 xs-12 valign-sm-center valign-xs-bottom">
				Invalid:
			</div>
            <div data-col="sm-8 xs-12 valign-center">
				{{merge-check-box model=model field="Invalid" readonly=true}}
			</div>
        {{/responsive-grid-area}}
    {{/if}}
{{/form-container}}

In the above configuration, another check-box is configured in editable-mode (see editable layout below). This check-box when checked ensures that the value of the merge-check-box component is updated for all selected entries.

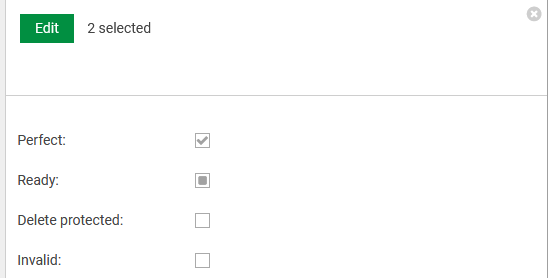

Layout (Non-editable)

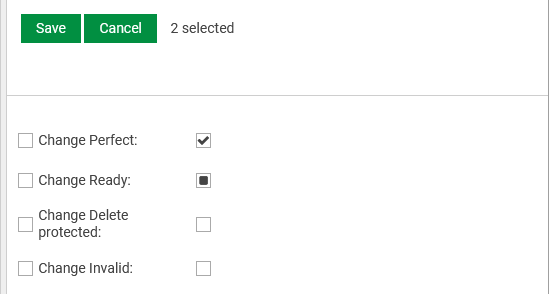

Layout (Editable)
