Endpoint Story Support in CM

Configuring Endpoints

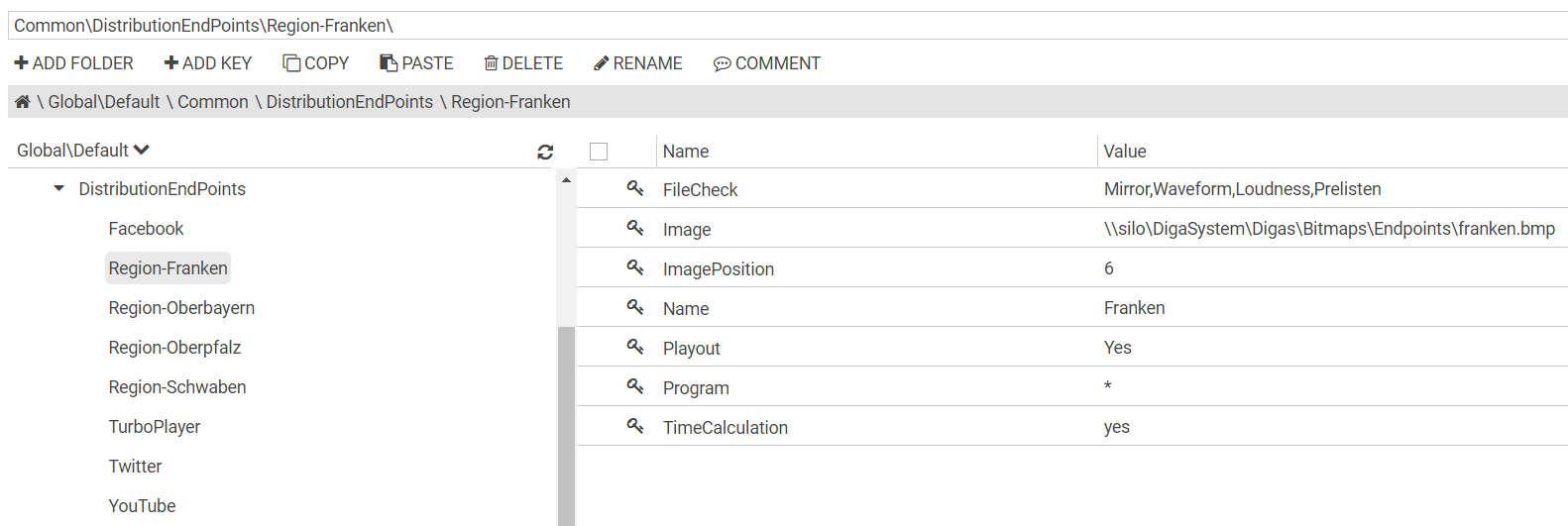

DigaSystem Parameters contain specified DistributionEndpoints under Common|DistributionEndpoints e.g.

This configuration is used from desktop applications, like DBM or DigAiRange or TurboPlayer, as well as from ContentManager; some properties are used only from desktop apps e.g. FileCheck, Playout, TimeCalculation.

ContentManager 2.x

The folder DpeWebApplication\CustomData\resources\DistributionEndPoints of the DPE Server must contain the images specified for distribution endpoints.

ContentManager 3.x

The ContentManager 3.x subfolder \CustomData\resources\DistributionEndPoints must contain the images specified for distribution endpoints.

Creating an Endpoint Story

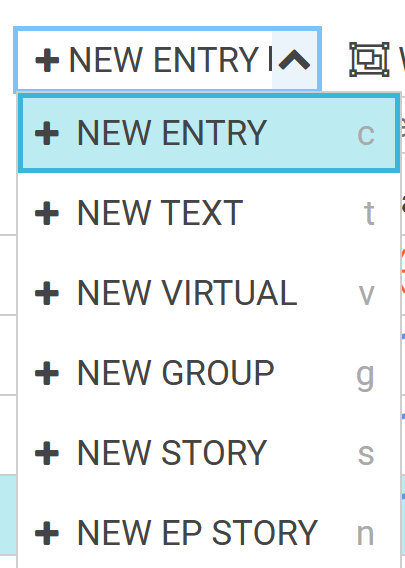

Use menu item “NEW EP STORY” or shortcut “n” to create an endpoint story.

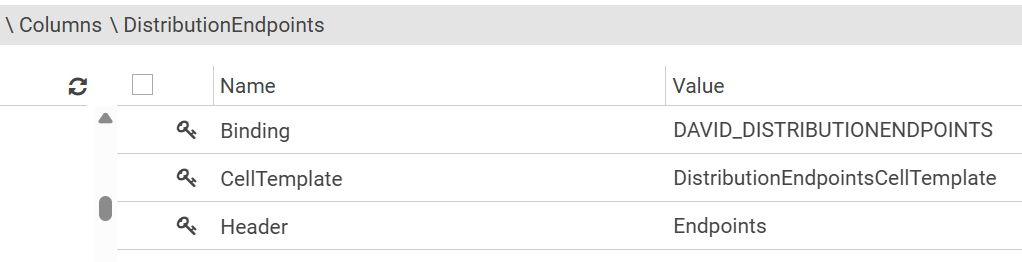

Displaying endpoint stories in the entry grid

See DistributionEndpointsCellTemplate in Available CellTemplates Values

Example column config:

Displaying and editing endpoint stories in a details pane

See “Configuration of DAVID/DISTRIBUTIONENDPOINTS custom field” in Adding combo-box component with fixed data source

In read-only mode

<tr><td>Endpoints:</td><td>{{select-box model=model field="DAVID/DISTRIBUTIONENDPOINTS" editable=false}}</td></tr>

In edit mode

<tr><td>Endpoints:</td><td>{{select-box model=editModel field="DAVID/DISTRIBUTIONENDPOINTS" maxlength=1000}}</td></tr>

Endpoint Story Consistency Check

Create column configurations for ContentManager\Columns\EPS_CONSISTENCY\ and ContentManager\Columns\EPS_INDIVIDUAL\

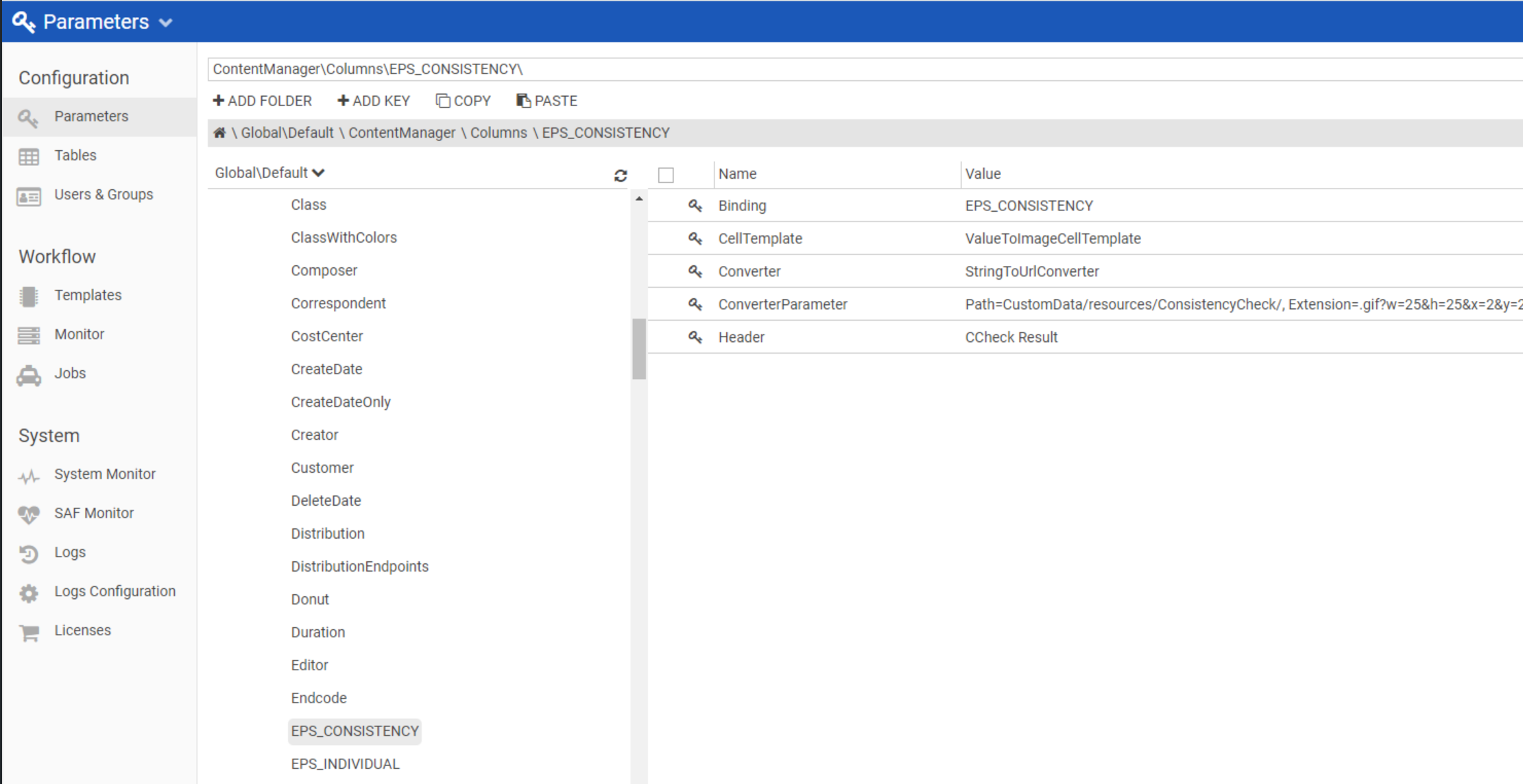

EPS_CONSISTENCY settings

EPS_INDIVIDUAL settings

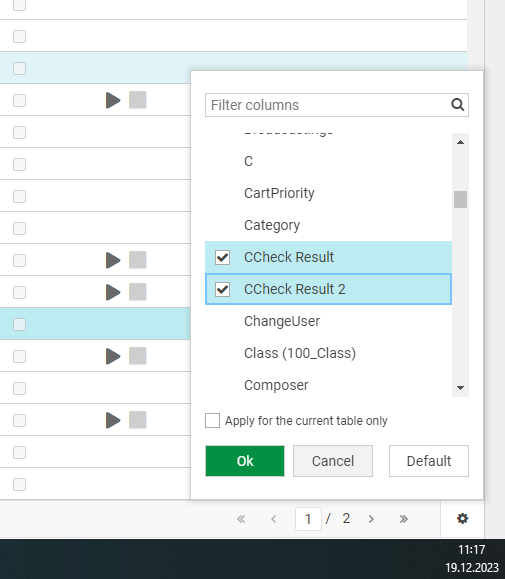

Enable CCheck Result columns from CM UI

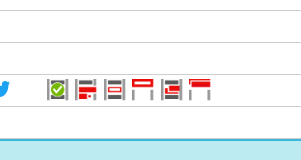

CCheck Result column
