In this section, we will be exploring how UI Theme parameters are applied in CM and its components.
For more detailed information on UI Themes please see Configuring UI Appearance with UI Themes.

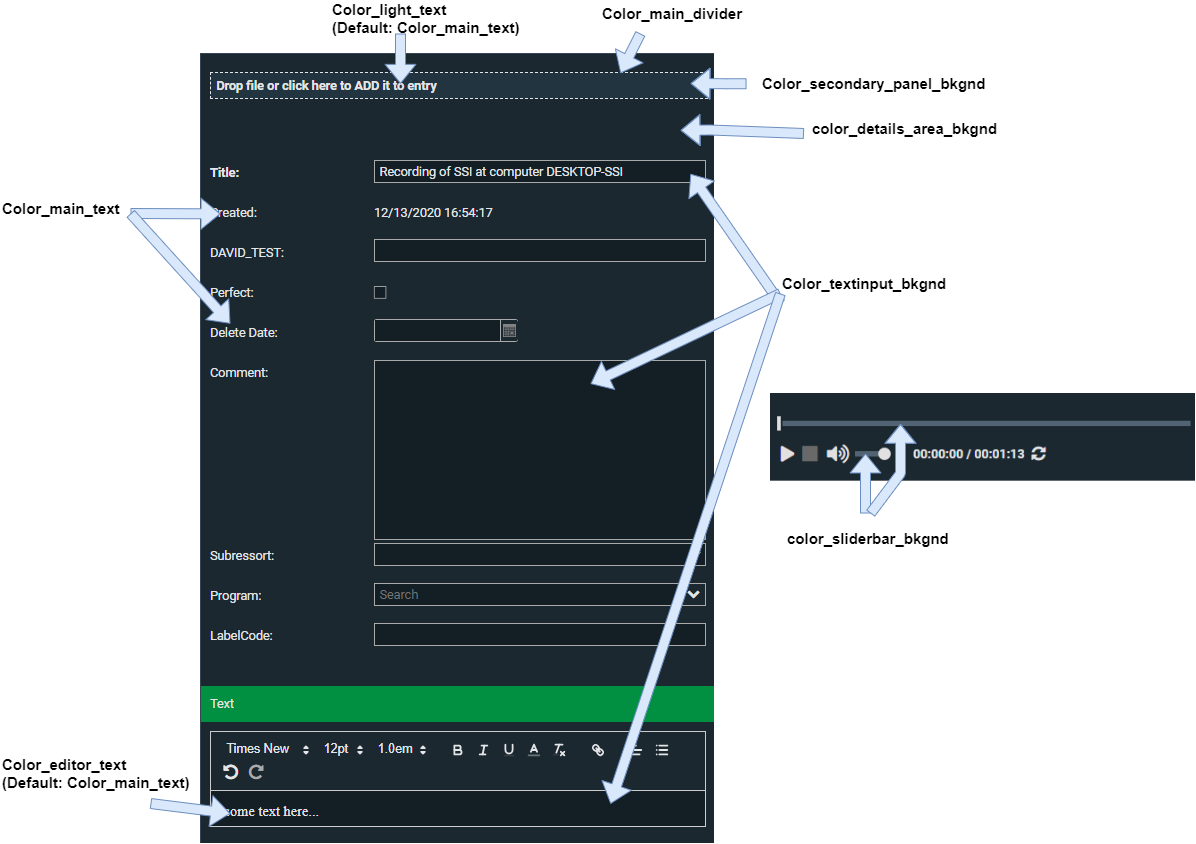

Details Area

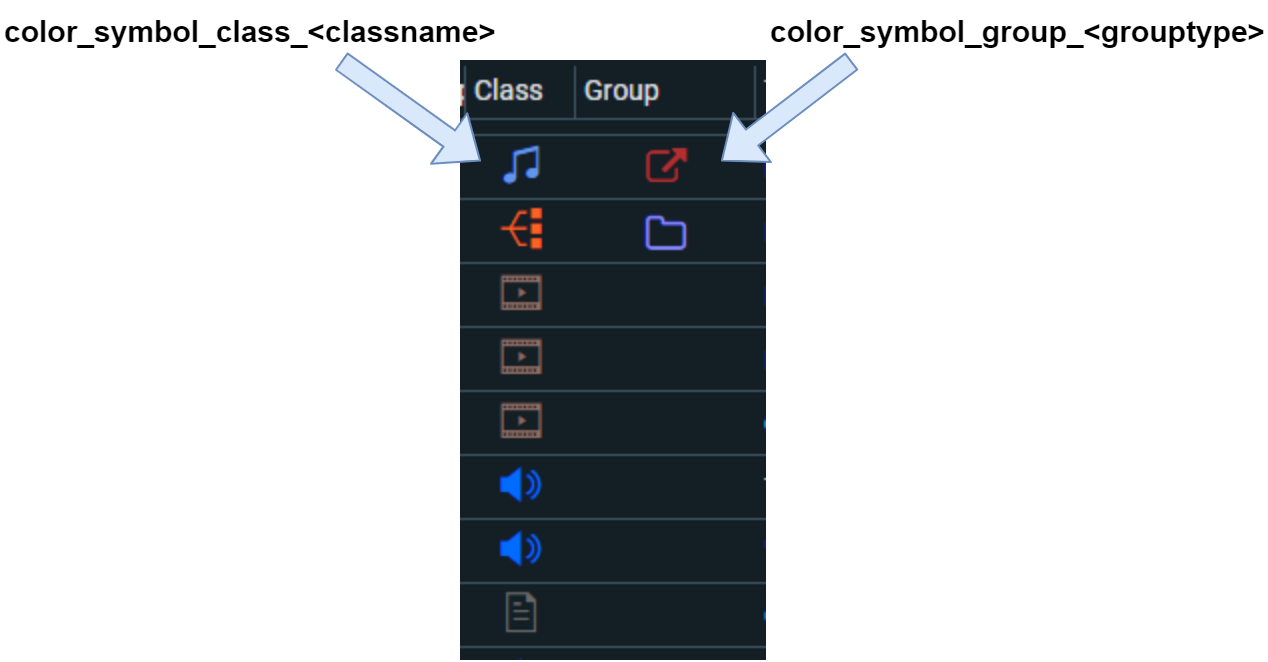

Class and Group Icons in Grid
-
Color_Symbol_Class_<ClassName> : Color of a class icon.
-
Color_symbol_group_<GroupType> : Color of the group icon:
-
Color_Symbol_Group_Collection : Color of the Collection icon.
-
Color_Symbol_Group_Group : Color of the Group icon, used in GroupAndParentCellTemplate and GroupCellTemplate inside the ContentManager grid
-
Color_Symbol_Group_Story : Color of the Story icon, used in GroupAndParentCellTemplate and GroupCellTemplate inside the ContentManager grid
-
Color_Symbol_Group_ParentLink : Color of the Parent Link icon, used in GroupAndParentCellTemplate and GroupCellTemplate inside the ContentManager grid.
-
Color_Symbol_Class_<ClassName> is also supported from Database Manager (DBM). Configuration can be shared when configuring this globally at |Common|UISchemes|<NameOfScheme>|Color_Symbol_Class_<ClassName>

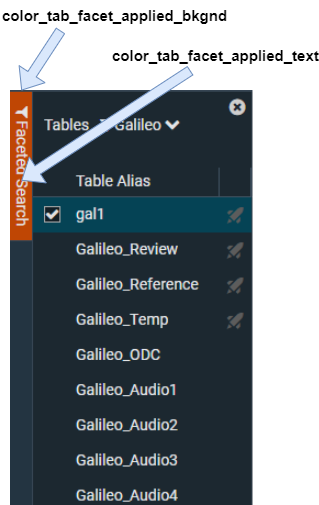

Facet Panel

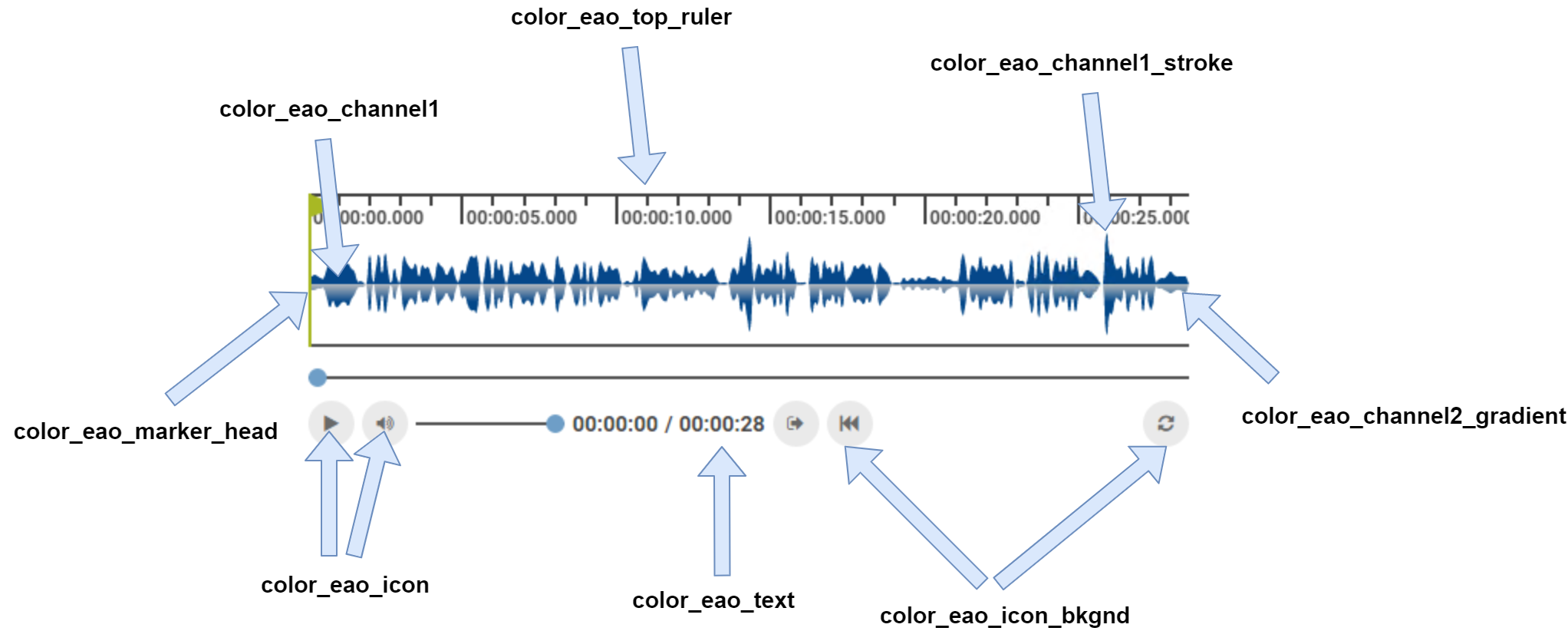

EAO
-
color_eao_channel_2_gradient : Color of the gradient separated with a coma where the first color define the bottom one and the second color define the middle one.
Details Area
Class and Group Icons in Grid
-
Color_Symbol_Class_<ClassName> : Color of a class icon.
-
Color_symbol_group_<GroupType> : Color of the group icon:
-
Color_Symbol_Group_Collection : Color of the Collection icon.
-
Color_Symbol_Group_Group : Color of the Group icon, used in GroupAndParentCellTemplate and GroupCellTemplate inside the ContentManager grid
-
Color_Symbol_Group_Story : Color of the Story icon, used in GroupAndParentCellTemplate and GroupCellTemplate inside the ContentManager grid
-
Color_Symbol_Group_ParentLink : Color of the Parent Link icon, used in GroupAndParentCellTemplate and GroupCellTemplate inside the ContentManager grid.
-
Color_Symbol_Class_<ClassName> is also supported from Database Manager (DBM). Configuration can be shared when configuring this globally at |Common|UISchemes|<NameOfScheme>|Color_Symbol_Class_<ClassName>
Facet Panel
EAO
-
color_eao_channel_2_gradient : Color of the gradient separated with a coma where the first color define the bottom one and the second color define the middle one.
