Start DigaTransfer Broker Task for an Entry

This section is part of configuring the Top Menu, from which it is possible to Open Entries in External Applications and Start Workflows. The pluginCmTransferBroker plugin is used to communicate with the Transfer Broker.

KeyValueDescription
Plugin

pluginCmTransferBroker


Specifies which plugin is used.

Config

JSON-formatted string

Please see the 'Example Config Key' section below.

Example Config Key

We recommend against manually typing the Config string, but to use DigaTransferClient's 'export to JSON' functionality instead. False escaping of characters inside the JSON-formatted string is thereby avoided.

Further details on the DigaTransferClient target configuration and the naming rule syntax can be found in the DigaTransferSystem documentation.

DPE with HTTP

JFX
{
  "Name": "Playout Center",
  "SoapAddress": "http://vm-d-80-ingest:5040",
  "TargetPath": "ftp://example:example@notebook-tps//",
  "NamingRule": "<TITLE>@max(20)_<>@File()@Path.Ext()",
  "Format" : "@PAL DVSD 44,1kHz",
  "AllowedFormats": "",
  "Flags": ""
}


DPE with HTTPS

To enable DPE running on HTTPS to call the DigaTransfer broker that is not on HTTPS, you must do two things:

  • Update the configuration by setting the https protocol for your SoapAddress as below
JFX
{
  "Name": "Playout Center",
  "SoapAddress": "https://vm-d-80-ingest:5040",
  "TargetPath": "ftp://example:example@notebook-tps//",
  "NamingRule": "<TITLE>@max(20)_<>@File()@Path.Ext()",
  "Format" : "@PAL DVSD 44,1kHz",
  "AllowedFormats": "",
  "Flags": ""
}


  • IIS: Use URL Rewrite to route HTTPS requests to HTTP (= SSL offloading)

    Follow these step for URL Rewrite:

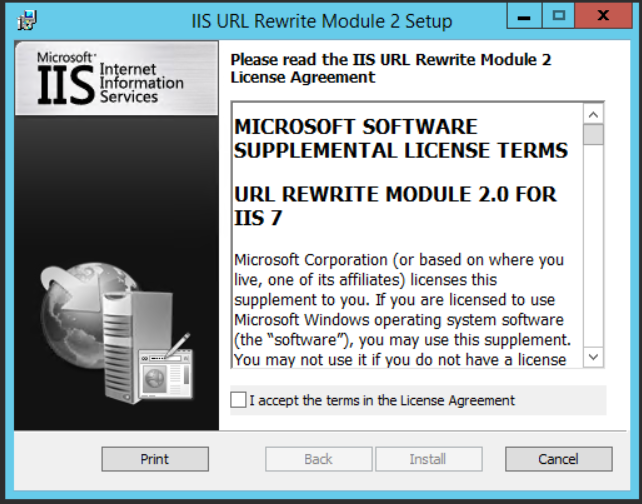

    Install URL Rewrite

    Download URL Rewrite module from the link mentioned in https://docs.microsoft.com/en-us/iis/extensions/url-rewrite-module/using-the-url-rewrite-module

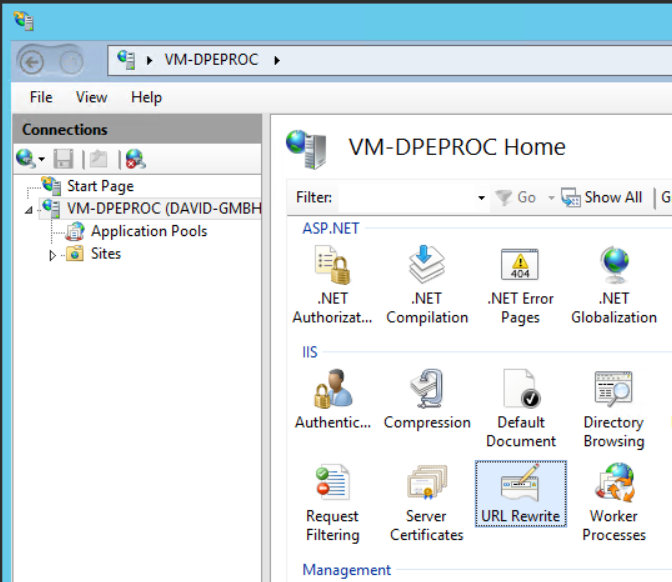

    After installation you will have the new module available in IIS Management:

    Install Application Request Routing

    Download Application Request Routing from the link mentioned in https://www.iis.net/downloads/microsoft/application-request-routing

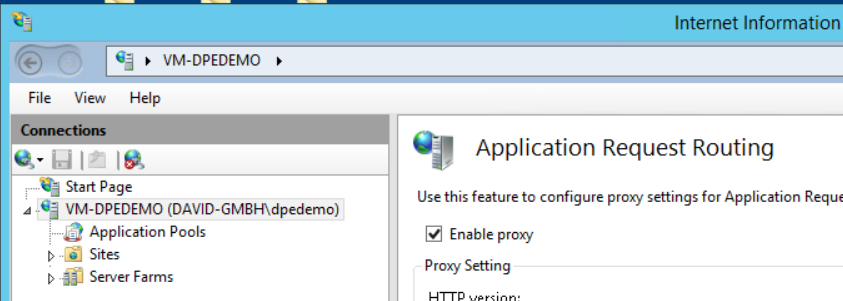

    Activate Reverse Proxy

    • Select Server (e.g. vm-dpedemo) on the left
    • Select "Application Request Routing Cache" on the right
    • Select "Server Proxy Settings..." on the very right
    • Enable Proxy (don't change anything else)

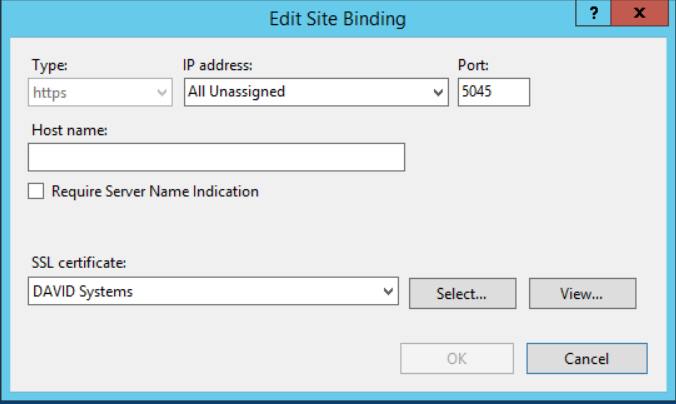

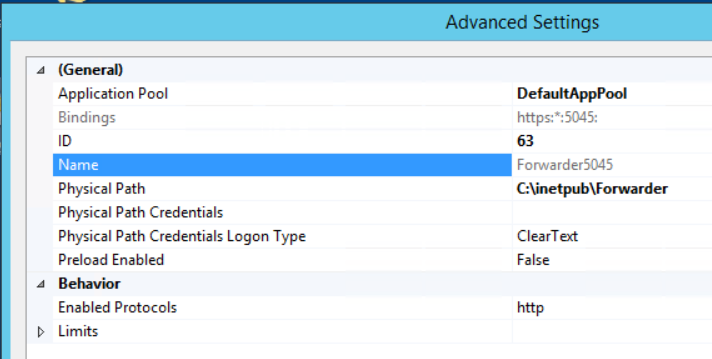

    Create SSL Listener/Proxy

    Add a new web site bound to HTTPS (and a dedicated port) and configure URL Rewriting for it. Don't forget to add a valid certificate to it.


    Examples:

    Proxy bound to https://dpe.davidsystems.com:5045/* is rewritten to http://vm-dpeproc:5045/* (for Broker HTML)

    Proxy bound to https://dpe.davidsystems.com:5040/* is rewritten to http://vm-dpeproc:5040/* (for Broker WebService)

    Edit web.config To Apply Rewriting

    Rewrite Broker HTML

    XML
    <?xml version="1.0" encoding="UTF-8"?>
    <configuration>
        <system.webServer>
        <rewrite>
          <rules>
            <rule name="Set header for HTTPS traffic" stopProcessing="true">
              <match url="(.*)" />
              <conditions>
                            <add input="{HTTPS}" pattern="on" />
              </conditions>
              <action type="Rewrite" url="http://vm-dpeproc:5045/{R:1}" />
            </rule>
            <rule name="HTTP traffic redirect" stopProcessing="true">
              <match url="(.*)" />
              <conditions>
                            <add input="{HTTPS}" pattern="off" />
              </conditions>
              <action type="Rewrite" url="http://vm-dpeproc:5045/{R:1}" />
            </rule>
          </rules>
        </rewrite>
          </system.webServer>
    </configuration>

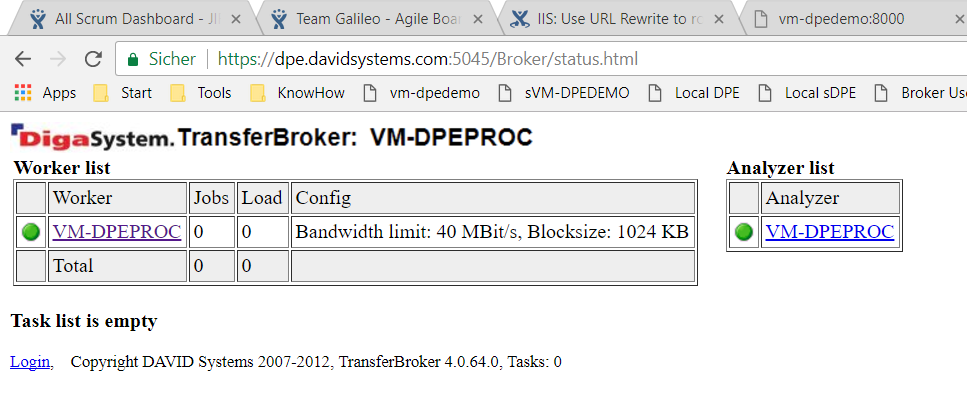

    Example Result: TransferBroker can be accessed via HTTPS link even if it does not support HTTPS.
