Configuring Scheduling Page

Configuration of the scheduling page is part of the settings.json, but more complex than a simple parameter. Therefore this chapter covers its details.

The configuration is stored in a nested array of customized Scheduling views under Scheduling\\views. Each entry is an object with the following attributes:

Name	Description	Required
icon Type: Path as String	Path to icon file of the view Note: It's suggested to use a black-and-white SVG file.	yes
name Type: String	Name of the view, used as caption on buttons	yes
schedulingWidth Type: String	Width of the scheduling area in pixels or percentage	no
showEndpointsFilter Type: Boolean	Displays the Distribution Endpoints filter	no, default: false
tracksFilter Type: CSV as String	List of visible tracks Note: Set to empty string to disable filtering. Add track number -1 to display the Show Pool.	yes
multiTrack Type: Object	Configuration of the multiTrack view. Note: See further documentation below.	yes
timeline Type: Object	Arrange elements of the show on a fixed timeline Note: See further documentation below.	no, default: disabled
rundown Type: Object	Configuration of rundown Note: See further documentation below.	no, default: disabled
toolbar Type: Object	Configuration of toolbar Note: See further documentation below.	no, default: disabled
contentManager Type: Object	Configuration of Content Manager Note: See further documentation.	no, default: disabled
upload Type: Object	To specify the allowed extensions for the upload file Note: See further documentation below.	no, default: disabled

Example

JS

"Scheduling\\views": [
    {
        "icon": "custom/Scheduling.svg",
        "name": "Scheduling",
		"schedulingWidth": "60%",
		"showEndpointsFilter": true,
        "tracksFilter": "0,1,110,120,130,1000,2001",

        "multiTrack": {
            "default": false,
            "linkScroll": false
        },

        "timeline": {
            "grid": 60,
            "resolution": 1
        },

        "rundown": {
            "columns": "StartMode, Class, StartStopTime, Title"
        },

        "toolbar": [
            {
                "caption": "New Element",
                "type": "element",
                "template": {
                    "Title": "New Element",
                    "Time_StartMode": "Manual",
                    "Time_StartType": "Floating"
                }
            },
            {
                "caption": "Schedule Recording",
                "type": "element",
                "template": {
                    "Title": "New Recording",
                    "Class": "Control",
                    "Time_StartMode": "Manual",
                    "Time_StartType": "Floating",
                    "Control_Operation1": "StartRecording",
                    "Control_Reference1": "MarkIn"
                }
            }
        ],

        "contentManager": {
            "defaultFilter": "Album:Hello World",
            "limit": 20,
            "acceptOnlyReady": true,
            "hideSoftDeleted": false,
			"sortBy": "createdate desc"
        },

        "upload": {
            "allowedExtensions": ".wav, .mp3"
        }
    }
]

Multi Track

The multiTrack object is used to show tracks side-by-side or as tabs on the Scheduling page. The button to enable it manually is always displayed.

Its parameters configure the Multi Track view:

Parameter

Description

Default Value

default

Type: Boolean

Set default view state of Multi Track

true Multi Track view is default
false Single Track view is default

false

linkScroll

Type: Boolean

Link scroll position of tracks

false

In the following example, the Single Track view will be used by default. Scrolling will be linked if the user switches to Multi Track view:

Example

JS

"multiTrack": {
	"default": false,
	"linkScroll": true
}

Rundown

The rundown object is used to configure the main component of the Scheduling page. The table fields can be toggled and ordered.

Parameter	Description	Default Value
columns Type: CSV as String	Toggle table columns and arrange their order Available column names: Title StartStopTime Duration Intro SendState StartMode Class Loudness ILK FileState Prelisten HasText (Display of the Textflag) Endpoints Transitions If bundleStartStopTime is disabled, these columns also are available StartTime StopTime Note: See chapter Custom Columns for configuration of additional, custom columns.	"StartStopTime, Title"
bundleStartStopTime Type: Boolean	Stack start and stop time in single column	true
allowDragDrop Type: Boolean	Toggle drag & drop for groups, stories and elements	true
dragDropFillWidth Type: Boolean	Set draggable area on nodes to full width or drag helper on the left side true nodes are draggable everywhere false nodes can only be dragged at the left side	false
hideTrackNumber Type: Boolean	Hide the track number	false
hideColumnsHeader Type: Boolean	Hide the columns header	false
durationsList Type: Array	Available durations as entries to the array show = duration of the show text = duration of all texts from elements inside a show (detached from the metadata field "Time_DurationMode" audio = duration of all audio elements inside a show (detached from the metadata field "Time_DurationMode" audioAndText = duration of all audios and texts of a show (with consideration of the metadata field "Time_DurationMode") visibleText visibleMedia visibleMediaAndText gaps = displays the sum of all gaps of a show overlaps = displays the sum of all overlaps of a show gapsOverlaps (displays gaps, else overlaps) difference = calculates the difference between the show duration and audioAndText length Note: Fields are hidden on small screens. Detailed information about time fields can be found in the BCSTechManual, chapter 8.8.	["show", "text", "gapsOverlaps"]

Example

JS

"rundown": {
	"columns": ["StartMode", "Class", "StartStopTime", "Title"],
	"bundleStartStopTime": false,
	"allowDragDrop": true,
	"dragDropFillWidth": true,
	"hideTrackNumber": false,
	"hideColumnsHeader": false,
	"durationsList": ["gapsOverlaps", "show", "text", "audio", "gaps", "overlaps"]
},

Custom Columns

In most cases a column is defined by its name only, e.g. Class or Title. Sometimes it is desirable to have full control about the representation of a field or to include custom BCS data. In this case define a custom column as a JSON object inside the array of fields.

Example

JS

"columns": [
	"Title",
	{
		"label": "Event",
		"field": "Event",
		"representation": "icon",
		"icons": {
			"done": "fa fa-check",
			"default": "fa fa-exclamation-triangle"
		},
		"tooltip": "Event"
	},
	"Class"
]

Following is a list of JSON attributes to specify a custom column.

Property	Description	Type
label	Label used for header in table	String
field	Name of the BCS field	String
representation	Display the contents as a simple string or convert to an icon. Conversion to icon is done using the icons property.	String, valid values: icon, string
icons	Mapping of content values to CSS classes, used to convert string values to icons from icon fonts.	Object
size	Width of column specified as a factor of the default width.	Number
tooltip	Additional information to display in a tooltip for users.	String

Toolbar

The toolbar is an array of objects, each representing a button.

Name

Description

caption

Type: String

Caption of the button in the toolbar

type

Type: String

Type of the node to be created. Can be any of "Group", "Story", "EndpointStory" or "Element"

shortcut

Type: Object

Shortcut to create the node. Refer to the "shortcut definition syntax" on the Configuring Shortcuts page or the examples below this section.

template

Type: Object

Preset of the node to be created; contains any BCS field. In most applications it is advised to include at least these attributes:

"Title": "New Recording",
"Time_StartMode" : "Manual",
"Time_StartType" : "Floating"

Since WDA version 1.4.357.0: If no "AllowedClasses" attribute is specified for a node of type "group" ,"story" or "endpointStory", the default "AllowedClasses" are set:

For a group: "News,Text,Music,Cart,Commercial,Audio,Magazine,Promotion,Graphic,Video,Story,Live,Line,Info"
For a story: "News,Text,Music,Cart,Commercial,Audio,Magazine,Promotion,Graphic,Video,Live,Line,Info"
For an endpointStory: "News,Text,Music,Cart,Commercial,Audio,Magazine,Promotion,Graphic,Video,Live,Line,Info"

Note: Custom BCS fields use two underscores instead of a dot (i.e. DEMO__YouTube instead of DEMO.YouTube)

children

Type: Object

An array of objects, each representing the child node(s) of a "group", "story" or "endpointStory" node. The child nodes themselves are then defined by the parameters "type" and "template" again.

Note: A "group" cannot contain another "group", a "story" cannot contain another "group" or "story" and an "element" cannot contain any child.

Therefore, if the child node itself is of type "story", it can only contain "elements" in its parameter "children".

If the child node itself is of type "element", it cannot contain the parameter "children".

Example

JS

"toolbar": [
	{
    	"caption": "New Element",
    	"type": "element",
		"shortcut": ["1"],
    	"template": {
    	    "Title": "New Element",
    	    "Time_StartMode" : "Manual",
    	    "Time_StartType" : "Floating"
    	}
	}
]

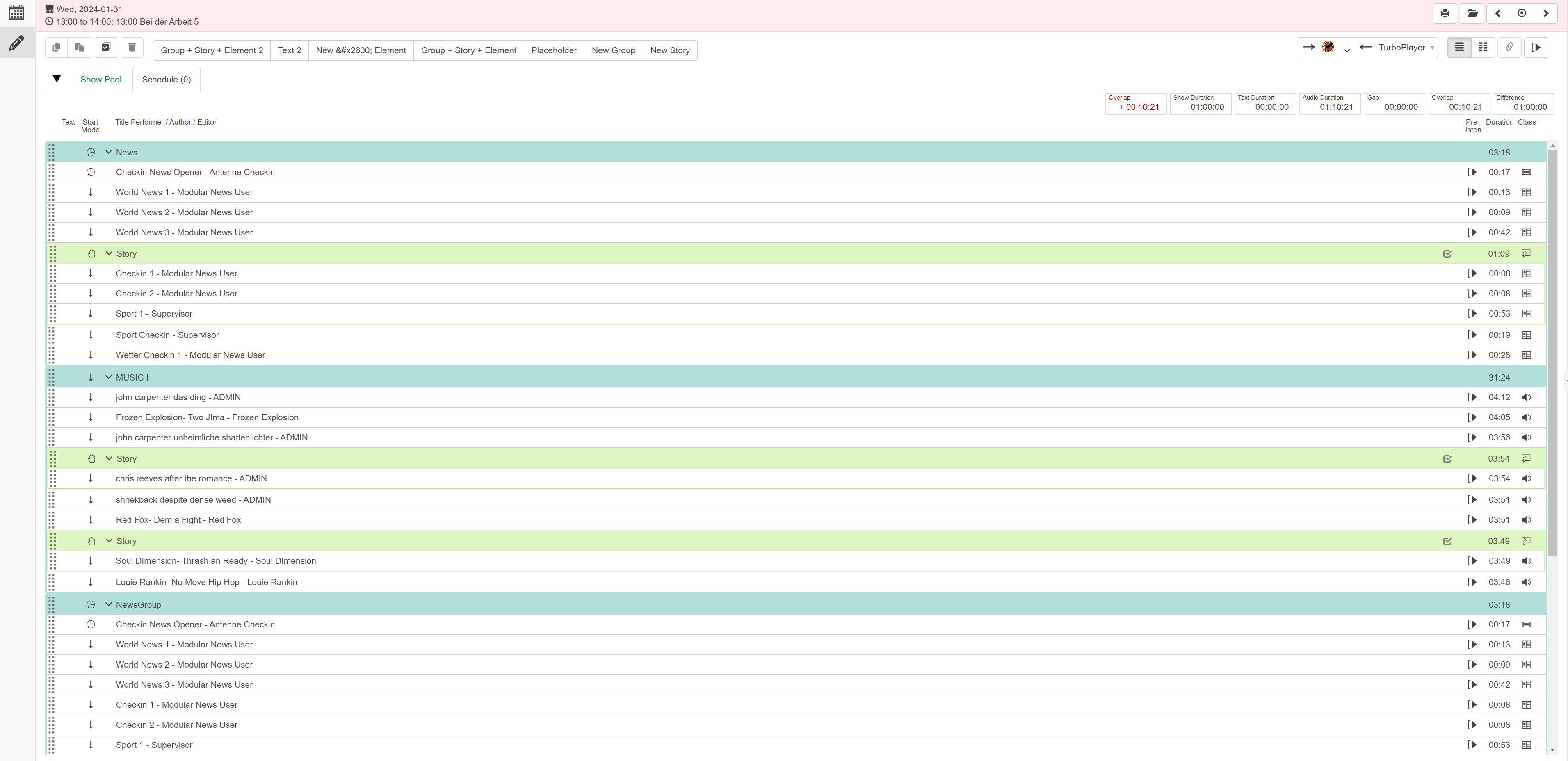

Example with children

JS

"toolbar": [
	{
		"caption": "Group + Story + Element",
		"type": "group",
		"shortcut": ["2"],
		"template": {
			"Title": "New Group",
			"AllowedClasses": "News,Text,Music,Cart,Commercial,Audio,Magazine,Promotion,Graphic,Video,Story,Live,Line,Info",
			"Time_StartMode" : "Manual",
			"Time_StartType" : "Floating"
		},
		"children": [
			{
				"type": "story",
				"template": {
					"Title": "New Story in Group",
					"AllowedClasses": "News,Text,Music,Cart,Commercial,Audio,Magazine,Promotion,Graphic,Video,Live,Line,Info",
					"Time_StartMode" : "Manual",
					"Time_StartType" : "Floating"
				},
				"children": [
					{
						"type": "element",
						"template": {
							"Title": "New Element in Story",
							"Time_StartMode" : "Manual",
							"Time_StartType" : "Floating"
						}
					}
				]
			}
		]
	}
]

Timeline

To enable timeline view of the rundown, set the "timeline" attribute.

Name

Description

resolution

Type: Number

Resolution of the timeline to calculate height of nodes. Unit: px / minute
Example: If set to 5, a three minute element, will have a height of 15 px.

grid

Type: Integer

Display a grid line with timestamp every n minutes.
Example: If set to 60, display a timestamp every hour.

snapToGrid

Type: Integer

Snap nodes to a grid every n minutes.
Example: If set to 15, nodes snap to 00:15, 00:30, 00:45, 01:00, 01:15, ...

Example

JS

"timeline": {
	"resolution": 1,
	"grid": 60,
	"snapToGrid": 15
}

Upload

Audio files (file types to be extended in the future) can be browse or drop on to a placeholder element from the computer.

Name

Description

Required

allowedExtensions

Type: String

The extension allowed should be given in the format ".wav".

no, default: ".wav"

setFilenameAsTitle

Type: Boolean

The title of the dropped file is used as title of the element

no, default: false

Example

JS

"upload": {
	"allowedExtensions": ".wav, .mp3",
	"setFilenameAsTitle": false
}
