Using the Audio and Video Preview Player

Play an Entry

To play an Audio or Video entry you can


Click the middle mouse button on the required entry in the table, or


Click on the required entry once to mark it, then on the Play symbol in the button bar, or


Mark the entry and select the Play option from the Entry menu.


A small preview tool opens directly beneath the marked row(s). The entry is played back automatically. In case of video items, the embedded MCLPlayer control is opening. The window size can be adjusted at the window borders.

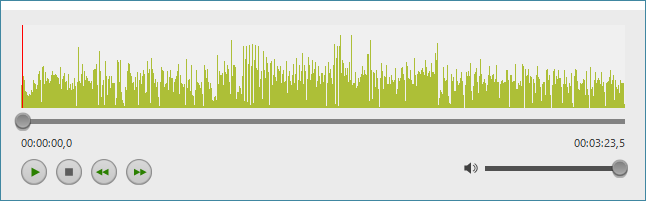

Audio Mini Player


Soundhead

Shows the time position of the soundhead

Length

Shows the duration of the media file


Playback

Starts playback


Pause

Stops the playback


The Rewind/Fast Forward buttons or the Playhead slider are used to navigate through the audio.
Playback speed is increased, decreased or reverted. The sound does not pitch.


Volume control

Dragging the slider adjusts the playback volume.

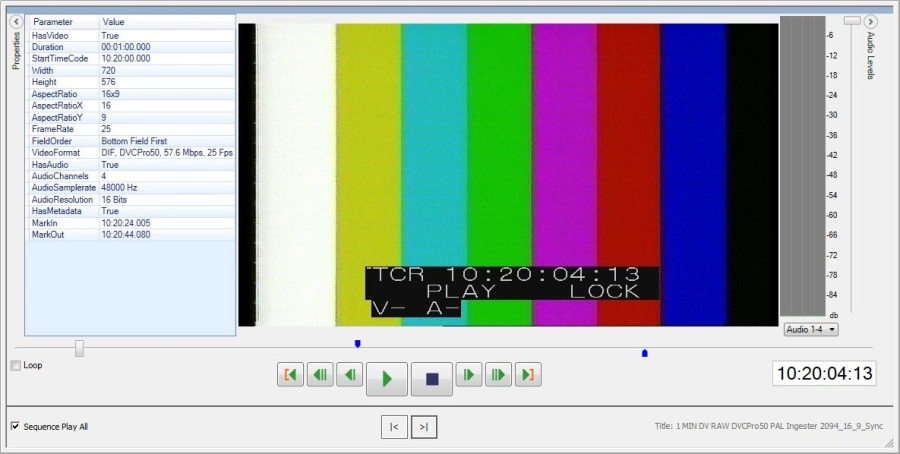

MCL Player



Loop
Plays the marked range or sub clip as a continuous loop.


Play
Plays the clip from the current head position.


Stop
Stops playback. Double-click to position the head at the beginning of the clip.


Mark IN\OUT
Set the blue markers to mark a specific part of the video.

worddav8f640cddbc245991a85048180f7d2c31.png   worddavdfc89f6aa424d66ebea23d38b41ef1a3.png

Go to mark IN\OUT
Places the playhead at the Mark In/ Out position.

worddavb278b4fb467d161966ca8ba41e15f2ab.png   worddavd007cb4ee2c4267c3c57b59f00afd94d.png

Jump 10 frames
Positions the head 10 frames for- or backwards

worddavd891b758dd6708338d8b3bdd6c74b555.png   worddavf60e1856bb416fe4e09298e0198aee09.png

Jump 1 frame
Positions the head one frame for- or backwards


Current head position
Displays the current playback position.


Audio channels
In this dropdown menu the audio channels can be selected separated or in combination


Vol meter
Displays the output level and controls the playback volume (independent of the level indicator).

In case you are playing a Group entry containing videos, then additional navigational buttons appear at the bottom:

worddav737e0da191a976f0d4160968d1fe97ef.png worddavd7509e10a074ca30eb356fb25ed6c7fb.png

Use the navigation buttons to switch to the previous/next group member (non-video entries are skipped).


Set a checkmark to watch all group videos consecutively.

Press Esc to close the EasyPlayer.

MultiFile Entries

Database entries can contain any number and any kind of files. These files are displayed and managed in the Media Tab of an entry.
