Content Windows

In the DigAIRange windows on the right are the content windows which display the required contents of the nodes selected from the show structure tree.

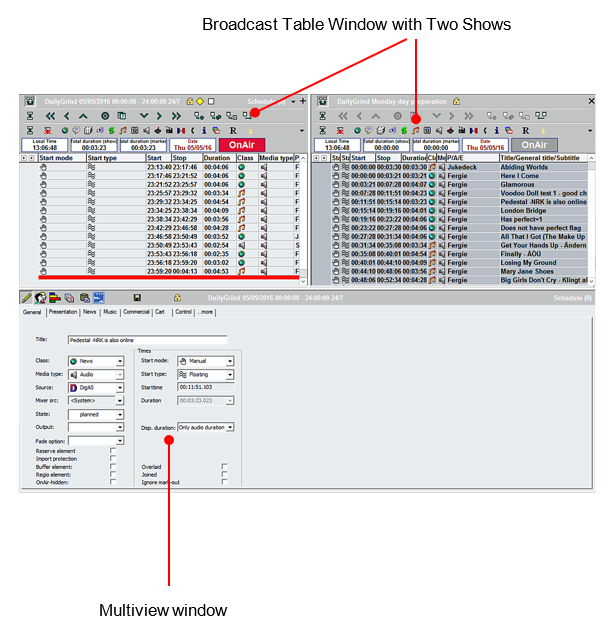

In the upper section are one or two broadcast table windows, depending on your user settings.

Double-click or drag&drop the required elements from the show structure tree to the content windows to display and edit the elements.

You are free to select what elements are displayed in which window. Normally, the broadcast schedule to be edited is moved to the left upper window (left broadcast table window), whereas prescheduling elements, such as pools and templates for preview, are displayed in the right upper window (right broadcast table window), or in the bottom window (multiview window).

You can drag&drop elements from the multiview window to the broadcast table window and the appropriate position.

Note: In this manual, the upper window is used as the broadcast table window and the bottom window as the multiview window.
